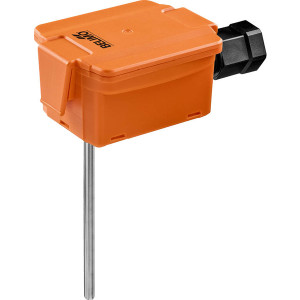

Orange plastic box with hinged lid and long metal rod hanging beneath, plus black cable gland.

22DT-54P | Belimo | Temperature Sensors & Transmitters

Duct / Immersion Temperature Sensor active, 4...20 mA, Probe Length 8" [200 mm], Probe Diameter 0.24" [6 mm]

Brand:Belimo

MPN:22DT-54P

SKU:22DT-54P

List Price:

$222.00

Today's Price:

$115.44

product datasheet

installation instructions

How To: Duct Sensors Installation and Commissioning Made Easy

Lead time of > 15 days. Chat with Kele experts now

product specifications

Type

RTD

Housing Material

Poly

Probe Length

8 in

Sensor Element

1K Platinum RTD 385

Accessory

T81U-XR,T91U-XR,TCC-111,TCC-12,WEL-B,WEL-S

Application

Hydronic HVAC

Output Signal

Analog

product series specifications

Supply Voltage:

22DT-52x 15...24 VDC, ±10%, 0.35 W; 24 VAC, ±10%, 0.82 VA

22DT-54x 15...24 VDC, ±10%, 0.5 W

Enclosure: NEMA 4X/IP65

Cover: Lexan, Belimo orange NCS S0580-Y6OR

Mounting: Mounting clip, screws, adhesive foil, cable gland nut conduit 1/2" NPT

Probe Length: Various lengths available in 2", 4", 6‚", 8", 12", 18"

Probe Material:Stainless steel

Sensor Element:PT100, PT1000, Ni1000, NTC 10k2, NTC 10k3,NTC 20k

Signal Output (Passive Temperature):

01DT-5Ax PT100, 01DT-5Bx PT1000, 01DT-5Ex Ni1000 (JCI), 01DT-5LxNTC10k2, 01DT-5Mx NTC10k3, 01DT-5QxNTC20k

Accuracy: passive sensors depending on used type

PT.. = ±0.5°F @ 32°F [±0.3°C @ 0°C]

Ni.. = ±0.7°F @ 32°F [±0.4°C @ 0°C]

NTC.. = ±0.3°F @ 77°F [±0.2°C @ 25°C]

Measuring Range:

PT.., Ni.. : -60°F to 320°F [-50°C to 160°C]

NTC.. : -60°F to 300°F [-50°C to 150°C]

Operating Humidity: 85% RH non-condensing

Operating Temperature: -30°F to 120°F [-35°C to 50°C]

Weight: 0.095 lbs.

Approvals: CE compliant, UL 2043, UL 50

Warranty: 5 year

product series features

Various lengths stainless steel available
Stainless steel or brass thermowell pockets available as accessories
NTC thermistors available
CE compliant
5 year warranty

more information & related documents

Series Description

The Belimo 01DT/22DT Duct / Immersion Temperature Sensor Series are for duct and pipe applications. NEMA 4X / IP65 rated enclosure. Various stainless steel probe lengths available. Stainless steel or brass thermowell pockets should be purchased with sensors intended for immersion applications. Active sensor available in 0-5/10V or 4-20 mA.

Kele Description

TEMP SENSOR, IMMERS, 1K RTD 385, 8.00" PROBE, POLY

Manufacturer

Belimo
