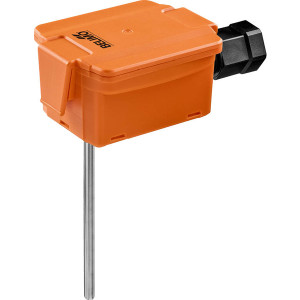

01DT-5LN | Belimo | Temperature Sensors & Transmitters

Supply Voltage:

22DT-52x 15...24 VDC, ±10%, 0.35 W; 24 VAC, ±10%, 0.82 VA

22DT-54x 15...24 VDC, ±10%, 0.5 W

Enclosure: NEMA 4X/IP65

Cover: Lexan, Belimo orange NCS S0580-Y6OR

Mounting: Mounting clip, screws, adhesive foil, cable gland nut conduit 1/2" NPT

Probe Length: Various lengths available in 2", 4", 6‚", 8", 12", 18"

Probe Material:Stainless steel

Sensor Element:PT100, PT1000, Ni1000, NTC 10k2, NTC 10k3,NTC 20k

Signal Output (Passive Temperature):

01DT-5Ax PT100, 01DT-5Bx PT1000, 01DT-5Ex Ni1000 (JCI), 01DT-5LxNTC10k2, 01DT-5Mx NTC10k3, 01DT-5QxNTC20k

Accuracy: passive sensors depending on used type

PT.. = ±0.5°F @ 32°F ±0.3°C @ 0°C

Ni.. = ±0.7°F @ 32°F ±0.4°C @ 0°C

NTC.. = ±0.3°F @ 77°F ±0.2°C @ 25°C

Measuring Range:

PT.., Ni.. : -60°F to 320°F -50°C to 160°C

NTC.. : -60°F to 300°F -50°C to 150°C

Operating Humidity: 85% RH non-condensing

Operating Temperature: -30°F to 120°F -35°C to 50°C

Weight: 0.095 lbs.

Approvals: CE compliant, UL 2043, UL 50

Warranty: 5 year
