BA/8M304 | BAPI | Temperature Sensors & Transmitters

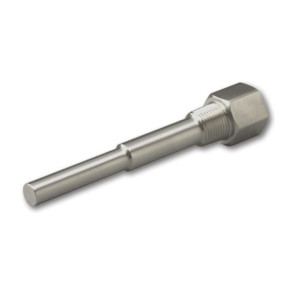

THERMOWELL, STAINLESS STEEL, 8.00" LENGTH, 1/2" NPT EXTERNAL, 1/2" NPSM INTERNAL

Brand:BAPI

MPN:BA/8M304

SKU:BA/8M304

List Price:

$-.--

Today's Price:

$-.--

product datasheet

installation instructions

catalog page

Lead time of 0 days. Chat with Kele experts now

product specifications

Enclosure Rating

None

Application

Hydronic HVAC

Probe Length

8 in

Type

Thermowell

product series specifications

Accuracy: Thermistor: ±0.36°F (0.2°C); RTD: ±0.55°F (0.30°C)

Sensor Type: Thermistor: 10 k? Type II & III; RTD: 100?, 1000?, 385 curve; 1000?, 375 curve

Temperature Range: 32° to 158°F (-0° to 70°C)

Stability: Thermistor: <0.036°F (0.02°C) per year; RTD: 0.14°C with 6,000 continuous hours at 400°C

Heat Dissipation: 2.7 mW/°C (power need to raise the temperature 1°C), 0.4°C/mW at 0°C

Enclosure Rating:

JB: NEMA 1, 2" x 4" J-box with 1/2" knockouts

BB: BB2: BB4: NEMA 1, BAPI Box 4- IP20 nylon & plastic

WP: NEMA 3R Aluminum

Mounting: Directly to pipe

Wiring Terminations: 22 AWG wire, etched teflon leads

Weight: I2: 0.65 lb (0.29 Kg) I4 & I8: 0.8 lb (0.36 Kg)

Approvals: CE, RoHS

Warranty: Lifetime

product series features

Several enclosure styles with mounting tabs
Probe lengths: 2 in, 4 in and 8 in
Lifetime limited sensor warranty

more information & related documents

Series Description

The BAPI BA Series Thermistor and RTD Immersion Sensors are designed specifically for HVAC systems. They come in thermistor and RTD sensors and feature double encapsulated sensor etched Teflon leadwires to create a watertight package that can perform in the real world.

Kele Description

THERMOWELL, STAINLESS STEEL, 8.00" LENGTH, 1/2" NPT EXTERNAL, 1/2" NPSM INTERNAL

Manufacturer

BAPI
