TGBBR00 | Veris | Temperature Sensors & Transmitters

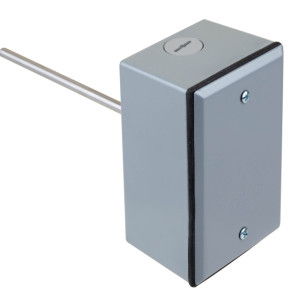

Duct temperature sensor, 100 Ω platinum RTD.

Brand:Veris

MPN:TGBBR00

SKU:TGBBR00

List Price:

$125.00

Today's Price:

$65.00

Lead time of 12 days. Chat with Kele experts now

product datasheet

installation instructions

product specifications

Enclosure Rating

NEMA 4

Housing

Weather Proof

Housing Material

Metallic

Probe Length

4 in

Sensor Element

100 Ohm Platinum RTD 385

Type

RTD

Output Signal

Resistance

product series specifications

Accuracy:

Thermistor: 2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C); 10k Type 2 & 3: ±0.06°F (0.1°C)

RTD: 100, 100 385 curve: ±0.17°F (0.3°C)

Sensor Type:

Thermistor: 2.2kO, 3kO, 10kO Type 2 & 3, 20kO, 100kO; RTD: 100O, Pt 385 Curve; 1000O, Pt 385 Curve

Temperature Range Thermistor/RTD: -13° to 221°F (-25° to 105°C)

Output: Resistance, 4-20 mA @ 500O

Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient

Mounting: Directly to duct Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m) Probe length: 4" (10 cm), 6" (15 cm), 8" (20 cm), 12" (30 cm), 18" (45 cm), 24" (61 cm) and 36" (91 cm)

Enclosure: mounting plate, handibox or weather proof enclosure

Weight: w/o different enclosures 4": 0.09 lb (0.04 Kg); 6": 0.11 lb (0.05 Kg); 8": 0.13 lb (0.06 Kg); 12": 0.24 lb (0.11 Kg); 18": 0.26 lb (0.12 Kg); 24": 0.35 lb (0.16 Kg); 36": 0.4 lb (0.18 Kg)

Approvals: CE

Warranty: 5 years

more information & related documents

Series Description

The Veris TD, TF, TG and TDDA Series Duct Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable precision thermistor material or platinum RTD. The TD Series is a stainless steel tube and mounting plate with lenghts of 4 in (10 cm), 6 in (15 cm), 8 in (20 cm), 12 in (30 cm), 18 in (45 cm), 24 in (61 cm) or 36 in (91 cm). The TF Series has metal handi box, while the TG Series has a weatherproof enclosure. The TDDA Series has weather proof enclosure and analog output.

Kele Description

DUCT TEMP WTHRPRF BOX 4 IN 100 OHM 385 RTD

Manufacturer

Veris
