TDBDR02

TDBDR02 | Veris | Temperature Sensors & Transmitters

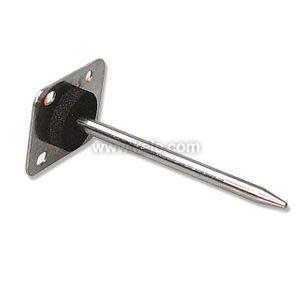

Duct Temp 4 In 10K T2 Thermistor NIST 2 Pt

Brand:Veris

MPN:TDBDR02

SKU:TDBDR02

List Price:

$114.00

Today's Price:

$59.28



(login for better pricing)

product specifications

Housing Material

Metallic

Housing Rating

NEMA 1

Output

Resistance

Probe Length

4 in

Sensor Element

10K Type 2 Thermistor

Type

Thermistor

product series specifications

Accuracy:

Thermistor: 2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C); 10k Type 2 & 3: ±0.06°F (0.1°C)

RTD: 100, 100 385 curve: ±0.17°F (0.3°C)

Sensor Type:

Thermistor: 2.2kO, 3kO, 10kO Type 2 & 3, 20kO, 100kO; RTD: 100O, Pt 385 Curve; 1000O, Pt 385 Curve

Temperature Range Thermistor/RTD: -13° to 221°F (-25° to 105°C)

Output: Resistance, 4-20 mA @ 500O

Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient

Mounting: Directly to duct Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m) Probe length: 4" (10 cm), 6" (15 cm), 8" (20 cm), 12" (30 cm), 18" (45 cm), 24" (61 cm) and 36" (91 cm)

Enclosure: mounting plate, handibox or weather proof enclosure

Weight: w/o different enclosures 4": 0.09 lb (0.04 Kg); 6": 0.11 lb (0.05 Kg); 8": 0.13 lb (0.06 Kg); 12": 0.24 lb (0.11 Kg); 18": 0.26 lb (0.12 Kg); 24": 0.35 lb (0.16 Kg); 36": 0.4 lb (0.18 Kg)

Approvals: CE

Warranty: 5 years

more information & related documents

Series Description

The Veris TD, TF, TG and TDDA Series Duct Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable precision thermistor material or platinum RTD. The TD Series is a stainless steel tube and mounting plate with lenghts of 4 in (10 cm), 6 in (15 cm), 8 in (20 cm), 12 in (30 cm), 18 in (45 cm), 24 in (61 cm) or 36 in (91 cm). The TF Series has metal handi box, while the TG Series has a weatherproof enclosure. The TDDA Series has weather proof enclosure and analog output.

Kele Description

DUCT TEMP 4 IN 10K T2 THMS NIST 2 PT

Manufacturer

Veris
