THTDGA08 | Tasseron Sensors | Temperature Sensors & Transmitters

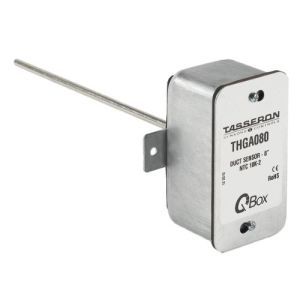

Q-Duct Box Temperature Sensor 10K type 2, 8” Probe, ip40

Brand:Tasseron Sensors

MPN:THTDGA08

SKU:THTDGA08

List Price:

$36.06

Today's Price:

$18.75

Lead time of 5 days. Chat with Kele experts now

product datasheet

product specifications

Accessory

T81U-XR, T85U-XR, T91U-XR, UR

Enclosure Rating

NEMA 2, IP40

Feature

Quick Connect, Knockouts

Application

Air Handling Unit, Duct Temperature

Housing Material

Metallic

Probe Length

8 in

Sensor Element

10K Type 2 Thermistor

Type

Thermistor

Output Signal

Resistance

product series specifications

Enclosure: NEMA 2/IP 40, 18 gauge / 1.2mm galvanized steel (NEMA 3S/IP 54 version on request) 1/2" knockout for wiring and fits optional watertight grommet

Cover: Dual slotted galvanized steel Quick Attach cover

Mounting: Integrated galvanized steel flange with two # 8 mounting holes

Probe Length: 4", 6", 8", 12", 18"

Probe Material: 6mm (± 1/4" AISI 316 stainless steel

Connection: 2-pole AWG 22-16, 0.35 - 1.5mm, 2 spring-loaded, Quick Connect wire terminals

Working Range: -40 to 125°C, -40 to 257°F

product series features

Galvanized steel enclosure with Quick Attach cover
Available in 4”, 6”, 8”, 12”, 18” lengths
AISI 316 stainless steel temperature probe
Quick Connect wire terminals eliminate wire nuts
1/2" port compatibale with watertight grommet
Full anti-vibration pad on front of box
NTC thermistors or RTD elements available
Compatible with most major control systems
Made in the USA

more information & related documents

Series Description

High quality universal Duct Temperature Sensor with galvanized steel enclosure and stainless steel AISI 316 probe for both commercial and industrial applications. Available measuring elements interface with most major control manufacturers. Accurate thermistors and RTD’s ensure low drift and are double encapsulated to guarantee the highest reliability. The dual-insulated, high quality, closed cell foam ensures sealing of the probe insert and absorption of vibrations. The dual-slotted, Quick Attach foamed cover and Quick Connect wire terminals make installations easy and reduce labor costs.<br>

Kele Description

TEMP SENSOR, DUCT, 10K TYPE II, 8.00" PROBE, METALLIC ENCL, NO OUTPUT

Manufacturer

Tasseron Sensors
