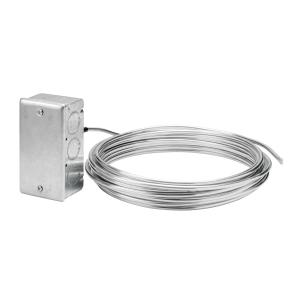

QAM2030.010 | Siemens Industry | Temperature Sensors & Transmitters

Duct Point Temperature Sensor, 10K Ω TYPE 2, 4, Rigid

Brand:Siemens Industry

MPN:QAM2030.010

SKU:QAM2030.010

List Price:

$53.53

Today's Price:

$27.84

(login for better pricing)

4 in stock

product datasheet

installation instructions

product specifications

Application

Duct Temperature, Air Handling Unit

Housing

Handy Box

Housing Material

Metallic

Housing Rating

NEMA 1

Output

Resistance

Probe Length

4 in

Sensor Element

10K Type 2 Thermistor

Type

Thermistor

product series specifications

Output Signals: 100K ? Thermistor 10K ? Type 2 Thermistor 1K ? @ 32°F Ni RTD 1K ? Pt RTD (375a) 1K ? Pt RTD (385a) 4 to 20 mA • -4°F to 122°F • 20°F to 120°F • 30°F to 250°F 10K ? Matched Pair Thermistor • (For use with Siemens TEC only)Probe Material:0.028 Wall SAE J526 ZTEW or Galfan steel tubing Housing* Standard NEC approved 2 × 4 inch (5 × 10 cm) utility box with 1/2-inch (13 mm) knockouts Screw Head Type: Standard slotted * Bracket-mounted units do not include housing

product series features

Variety of sensing elements
Suitable for multiple duct applications
Responsive to temperature change.
Accurate and reliable indication of duct temperature.
Familiar installation process does not require special tools.

more information & related documents

Series Description

Siemens Duct Temperature Sensors monitor and transmit changes in duct air temperature to the HVAC control system. They provide an accurate, reliable indication of duct air temperature. The sensor resistance varies proportionally to the actual temperature being measured.

Kele Description

NTC10K – DUCT POINT SENSOR/ THERMISTOR, 10K OHM TYPE 2, 4"

Manufacturer

Siemens Industry
