TT809PW080E1S1 | Minco Products | Temperature Sensors & Transmitters

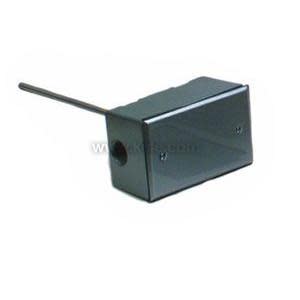

Duct Temperature Sensor, 1K RTD 375, 6 leads, 8 Probe, 4-20 mA, Range codes 0°/100°F, No calibration data, sensor, or transmitter

Brand:Minco Products

MPN:TT809PW080E1S1

SKU:TT809PW080E1S1

List Price:

$563.00

Today's Price:

$292.76



(login for better pricing)

product specifications

Accessory

T81U-XR, T85U-XR, T91U-XR, DCP-1.5-W, DCPA-1.2

Application

Duct Temperature, Air Handling Unit

Lead Length

6 in

Output

4 - 20 mA

Probe Length

8 in

Sensor Element

1K Platinum RTD 375

Type

RTD

product series specifications

Supply Voltage: 9.4-35 VDC

Accuracy: Transmitter accuracy ±0.1% of span

Transmitter linearity: ±0.1% of span

Sensor accuracy: ±0.12%

Signal Output: 4-20 mA @ 730 O , two-wire, loop powered

Rangeability: Zero -50° to 212°F (-45° to 100°C)

Span: 30° to 320°F (17° to 180°C)

Sensor Type: 1000 platinum RTD, two-wire

0.00375 O / O / O TCR

0.00385 O / O / O TCR

Operating Temperature: -40° to 185°F (-40° to 85°C)

Enclosure: Cast aluminum moisture-resistant 1/2" FNPT and gasketed cover, suitable for outdoor use, UL #459L

Averaging Sensor: Copper

Probe: Stainless steel

Wiring Terminations: Screw terminals; non-polar, for connections either way; 4" (10 cm) 22 AWG leads

Weight: Duct: 0.8 lb (0.36 Kg)

AVG: 12': 1.5 lb (0.68 Kg); 24': 2 lb (0.91 Kg); 50': 3.6 lb (1.63 Kg)

OSA: 0.75 lb (0.34 Kg)

Immersion: 0.75 lb (0.34 Kg)

Wall: 0.75 lb (0.34 Kg)

Warranty: 3 years

product series features

  • Switch-set rangeable with zero and span
  • One-point field calibration
  • Non-polar loop connections
  • Weatherproof sensor interface housing
  • Noninteracting zero/span adjustment

more information & related documents

Series Description

The Minco TT809 1000 Ohm Platinum RTD Rangeable Temperature Duct Transmitter is specifically designed for HVAC, industrial and building automation applications. It has a zero setting that can be established anywhere from -50 to 212 degrees F (-45 degrees to 100 C) and span from 30 to 320 degrees F (17 to 180 C). The Model TT809 comes factory calibrated, and once installed, it can be field calibrated with high precision DVM and decade box. To calibrate the transmitter simply adjust the zero point to match the calibration reference. The gasketed cast-metal housing provides excellent weather resistance. The screw terminal connections on the transmitter circuit, 1/2 in NPT threaded connection, and adjustable mounting brackets simplify installation. Several varieties of precision 1000 Ohm platinum RTD probes are easily mated with the transmitter housing.

Kele Description

TEMPSENSOR ,DUCT,1KRTD375,8.00"PROBE, METALLICENCL,4-20MA
