KTV-11K-XLT | Kele | Temperature Sensors & Transmitters

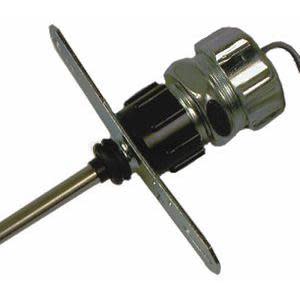

VAV Box Duct Temperature Sensor, 10K Type III 11K Shunt Thermistor, Liquid-Tight Fitting (Factory installated)
Brand:Kele
MPN:KTV-11K-XLT
SKU:KTV-11K-XLT
product specifications
Accessory
T81U-XR, T85U-XR, T91U-XR, UR
Feature
Liquid Tight Fitting
Application
Variable Air Volume, VAV, Duct Temperature
Housing Rating
None
Output
Resistance
Probe Length
4.875 in
Sensor Element
10K Thermistor Type 3 with 11K Shunt
Type
Thermistor
product series specifications
- Accuracy:
- Thermistor:
- ±0.50‚Ñâ (0.28‚ÑÉ)
- RTD:
- ±0.60‚Ñâ (0.33‚ÑÉ)
- Sensor Type:
- Thermistor:
- 2.252kΩ, 3kΩ, 10kΩ Type II, III & III w/11K shunt, 20kΩ, 100kΩ
- RTD:
- Type 71, 81:
- 100Ω Pt 385 Curve
- Type 85:
- 1000Ω Pt 385 Curve
- Type 91:
- 1000Ω Pt 375 Curve
- Temperature Range:
- Thermistor/RTD:
- -40° to 221‚Ñâ (-40° to 105‚ÑÉ)
- Temperature Coefficient:
- Thermistor:
- Negative temperature coefficient
- RTD:
- Positive temperature coefficient
- Temperature Stability:
- Thermistor:
- 0.24‚Ñâ (0.13‚ÑÉ) over five years
- RTD:
- Max 0.04% after 1k hours @ 500 ‚ÑÉ
- Heat Dissipation:
- 2.7 mW/°C (power needed to raise the temperature 1°C)
- Enclosure Rating:
- Depends on the model
- Mounting:
- T-bar with protective grommet seal, Directly to Duct or Single gang box
- Wiring Terminations:
- 5' (1.5m), 24 AWG gray wire leads with optional quick disconnects and plenum rated cable, type 71 & 81 sensors have 18‚Ä= leads
- Probe:
- Seamless 304 stainless steel tube, 1‚ÅÑ4" OD, 4.87" (12.4 cm) long
- Weight:
- 0.15 lbs (0.07 Kg)
- Approvals:
- CE
- Warranty:
- 3 years
product series features
- Economical
- Stainless steel probes
- Three-year warranty
- Wide thermistor or RTD sensor selections
- Simple traditional mounting
- OPTIONS
- Greenfield fittings
- Plenum cable
- 1/4 in quick connects
- Volume based options excepted
more information & related documents
Series Description
The Kele KTV VAV Box Duct Thermostor and RTD Sensors from Kele are designed to be cost-effective with accuracies of 0.5 degrees F (0.28 degrees C). Each VAV box duct sensor mounts directly to the duct and is constructed for easy installation with optional quick disconnects and plenum cable when needed. The thermistor is made of a very stable, pre-aged material that offers long-life reliability for HVAC control. The platinum RTD comes in 100 Ohm and 1000 Ohm versions. All sensors come with three-year warranty.
Kele Description
TEMP SENSOR, DUCT, 10K TYPE III 11K SHUNT, 4.875" PROBE, NO ENCL, NO OUTPUT
Manufacturer
Kele
