KTU81 | Kele | Temperature Sensors & Transmitters
100 RTD 385 Universal-Mount RTD @32°F (0°C), 385 Platinum Curve (Gray Leads)
Brand:Kele
MPN:KTU81
SKU:KTU81
product specifications
Accessory
T81U-XR, T85U-XR, T91U-XR, OSAB, F-1000-331, UR
Application
Air Handling Unit, Duct Temperature
Housing Material
Poly
Housing Rating
NEMA 3R, IP22
Output
Resistance
Probe Length
4.875 in
Sensor Element
100 Ohm Platinum RTD 385
Type
RTD
product series specifications
- Accuracy:
- Thermistor:
- ±0.50‚Ñâ (0.28‚ÑÉ)
- RTD:
- ±0.60‚Ñâ (0.33‚ÑÉ)
- Sensor Type:
- Thermistor:
- 2.252 kΩ, 3 kΩ, 10 kΩ Type II, III & III w/11K shunt, 20 kΩ, 100 kΩ
- RTD:
- Type 71, 81:
- 100Ω Pt 385 Curve
- Type 85:
- 1000Ω Pt 385 Curve
- Type 91:
- 1000Ω Pt 375 Curve
- Temperature Range:
- Thermistor/RTD:
- -40° to 221‚Ñâ (-40° to 105‚ÑÉ)
- Temperature Coefficient:
- Thermistor:
- Negative temperature coefficient
- RTD:
- Positive temperature coefficient
- Temperature Stability:
- Thermistor:
- 0.24‚Ñâ (0.13‚ÑÉ) over five years
- RTD:
- Max 0.04% after 1k hours @ 500 ‚ÑÉ
- Heat Dissipation:
- 2.7 mW/°C (power needed to raise the temperature 1°C)
- Enclosure Rating:
- NEMA 3R, UL 94V-0, plenum-rated plastic, IP22, UV protected with snap-off cover
- Mounting:
- Directly to duct, immersion well, or OSA wall mount with appropriate bracket
- Wiring Terminations:
- 8', 24 AWG gray wire leads, type 71 & 81 sensors have 18" leads
- Probe:
- Seamless 304 stainless steel tube, 1‚ÅÑ4" OD, 4.87" long
- Weight:
- 0.25 lb (0.11 Kg) w/o options
- Approvals:
- CE
- Warranty:
- 3 years
product series features
- Three-year warranty
- Flame retardant, plenum rated
- Adaptable with many mounting options
- 304 stainless steel waterproof probes
- Paintable plastic
- NEMA 3R, IP22
more information & related documents
Series Description

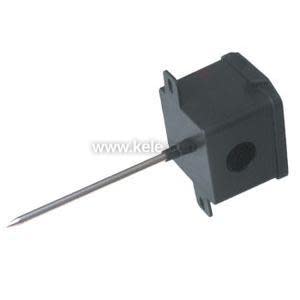

The Kele KTU* Series Universal-Mount Thermistor and RTD Sensors provide remote temperature sensing in multiple applications such as duct, OSA, and immersion installations for building automation systems. The active sensing element is a highly stable thermistor material or platinum RTD. The sensing element is sealed with a thermally conductive compound in a 4-7/8 in (12.38 cm) long stainless steel probe and is attached to a 2.5 in (6.35 cm) square enclosure. The tabs on the enclosure provide mounting ears for direct duct mounting and are easily removable if they are not needed. This multipurpose enclosure minimizes the number of stock parts required to handle multiple applications.
Kele Description
TEMP SENSOR, DUCT, 100 RTD 385, 4.875" PROBE, POLY ENCL NEMA 3R, NO OUTPUT
Manufacturer
Kele
