BA/10K-3-D-8-NB-18 | BAPI | Temperature Sensors & Transmitters

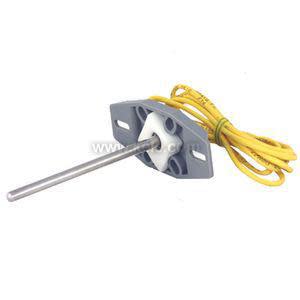

Duct Temperature Sensor, 10K Type III Thermistor, 8 Probe, No Box, 18 Leads
Brand:BAPI
MPN:BA/10K-3-D-8-NB-18
SKU:BA10K3D8NB18
product specifications
Accessory
T85U-XR, T81U-XR, T91U-XR, UR
Application
Duct Temperature, Air Handling Unit
Housing Rating
None
Lead Length
18 in
Output
Resistance
Probe Length
8 in
Sensor Element
10K Type 3 Thermistor
Type
Thermistor
product series specifications
- Accuracy:
- Thermistor:
- ±0.36‚Ñâ (0.2‚ÑÉ)
- RTD:
- ±0.55‚Ñâ (±0.30‚ÑÉ)
- Sensor Type:
- Thermistor:
- 10 kΩ Type II & III
- RTD:
- 100Ω, 1000Ω, 385 curve; 1000Ω, 375 curve
- Temperature Range:
- 32° to 158‚Ñâ (-0° to 70‚ÑÉ)
- Stability:
- < 0.036‚Ñâ (0.02‚ÑÉ) per year, 0.14‚ÑÉ with 6,000 continuous hours at 400‚ÑÉ
- Heat Dissipation:
- 2.7 mW/‚ÑÉ (power need to raise the temperature 1‚ÑÉ), 0.4‚ÑÉ/mW at 0‚ÑÉ
- Enclosure/Weight:
- NB:
- No Box; 0.5 lb (0.23 Kg)
- JB:
- 2‚Ä= x 4‚Ä= J-box with 1/2‚Ä= knockouts: 0.65 lb (0.29 Kg)
- BB:
- BAPI-Box - IP66 rated, UV-resistant polycarbonate; 0.8 lb (0.36 Kg)
- BB2:
- BAPI-Box 2 - IP66 rated, UV-resistant polycarbonate; 0.8 lb (0.36 Kg)
- WP:
- NEMA 3R cast aluminum; 0.8 lb (0.36 Kg)
- Mounting:
- Directly to duct
- Wiring Terminations:
- 22 AWG wire, etched teflon leads
- Approvals:
- CE, RoHS
- Warranty:
- Lifetime
product series features
- Several enclosure styles with mounting tabs for easy installation
- Probe lenghts: 4 in, 8 in, 12 in and 18 in
- Lifetime limited sensor warranty
more information & related documents
Series Description
The BAPI BA Series Duct Thermistor and RTD Sensors are available in a variety of easy-to-mount installation types. They come in thermistor and RTD sensors and feature etched Teflon leadwires and encapsulated sensors to create a watertight package that can perform in the real world.
Kele Description
DUCT 8IN THERM 10K-III NO BOX
Manufacturer
BAPI
