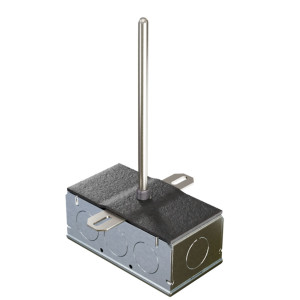

A/AN-D-18"-GD | ACI | Temperature Sensors & Transmitters

Accuracy:

Thermistor: ±0.36°F (0.2°C)

RTD: ±0.50°F (0.28°C)

Sensor Type:

Thermistor: 10 kΩ Type II & III, 20 kΩ, 100 kΩ

RTD: 100Ω, 1000Ω 385 curve

Temperature Range: -40° to 275°F (-40° to 135°C)

Stability:

Thermistor: 0.24°F (0.13°C) over five years

RTD: <±0.1°C drift

Measurement Range: -40° to 302°F (-40° to 150°C)

Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)

Enclosure Rating: NEMA 1, Galvanized metal box

Wiring Terminations: 10" of 22 AWG wire or terminal strip

Weight:

4": 0.6 lb (0.27 Kg)

8": 0.72 lb (0.72 Kg)

12": 0.9 lb (0.41 Kg)

18": 1.0 lb (0.45 Kg)

Approvals: CE, RoHs

Warranty: 5 years
