A/1K-NI-D-18"-PB | ACI | Temperature Sensors & Transmitters

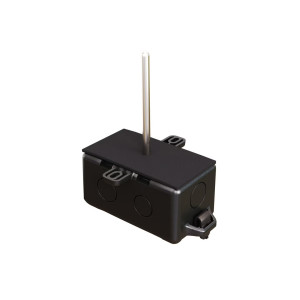

1,000 Ohm Nickel RTD, Duct, 18", Plastic Enclosure
Brand:ACI
MPN:A/1K-NI-D-18"-PB
SKU:A/1KNID18PB
List Price:
$62.00
Today's Price:
$32.24
Log in for customized pricingproduct specifications
Type
RTD
Housing Material
Poly
Probe Length
8 in
Sensor Element
1K Ohm Nickle-Iron Balco
Enclosure Rating
NEMA 1
Accessory
TT100-0100-BO-1,TT100-0100-BO-2,TT100-0100-BO-4,TT1K-0100-BO-1,TT1K-0100-BO-2,TT1K-0100-BO-4,UR,F-1000-331
Application
Duct Temperature,Air Handling Unit
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: ±0.36°F (0.2°C)
RTD: ±0.50°F (0.28°C)
Sensor Type:
Thermistor: 10 kΩ Type II & III, 20 kΩ
RTD: 100Ω, 1000Ω 385 curve
Temperature Range: -40° to 275°F (-40° to 135°C)
Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: <±0.1°C drift
Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)
Measurement Range: -40° to 302°F (-40° to 150°C)
Enclosure Rating: NEMA 1, Plastic Box
Wiring Terminations: 10 pairs of 22 AWG wire
Probe: Seamless Stainless steel tube, 1/4" (0.64 cm) O.D.
Dimensions: less probe 4.5"W x 2.3"H x 2.3"D (11.4 x 5.8 x 5.8 cm)
Weight: Duct: 0.72 lb (0.32 Kg)
Immersion: 1.0 lb (0.45 Kg)
Approvals: CE, RoHS
Warranty: 5 years
product series features
- 5 year warranty
- Selection of thermistors and RTDs
- Immersion and duct applications
more information & related documents
Series Description
The ACI Plastic Box Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The A/*PB duct and immersion sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today.
Kele Description
TEMP SENSOR, DUCT, 1K NI RTD, 8.00", POLY ENCL, NO OUTPUT
Manufacturer
ACI
