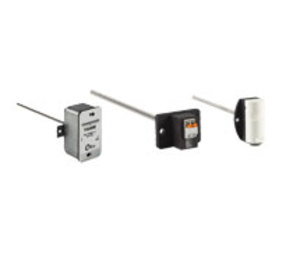

* product series image displayed

THTAPA18 | Tasseron Sensors | Temperature Sensors & Transmitters

AVERAGE MINI NTC 10K-2 18IN RIGID

Brand:Tasseron Sensors

MPN:THTAPA18

SKU:THTAPA18

List Price:

$155.00

Today's Price:

$80.60

Lead time of 5 days. Chat with Kele experts now

product series specifications

Enclosure:

Q-Duct Box: IP40, 18 gauge / 1.2mm galvanized steel (IP54 version on request)

Q-Duct Mini: IP54, injection-molded polycarbonate

Cover:

Q-Duct Box: Dual slotted galvanized steel Quick Attach cover

Q-Duct Mini: Quick Snap, injection-molded polycarbonate

Mounting:

Q-Duct Box: Integrated galvanized steel flange with two #8 mounting holes

Q-Duct Flange: Injection-molded 30% glass-filled nylon flange with two integrated #8 mounting holes

Q-Duct Mini: Two integrated #8 mounting holes

Probe Length: 4", 6", 8", 12", 18"

Probe Material: 6mm (± 1/4") AISI 316 stainless steel

Connection: 2-pole AWG 22-16 / 0.35-1.5mm2 spring-loaded, Patent Pending Quick Connect System

Sensor Element: Interchangeable NTC thermistor, 2-wire, RTD Pt1000, 2-wire, Ni1000-891, 2-wire

Sensor Value:

NTC 10KΩ type 2 @ 25°C / 77°F

NTC 10KΩ type 3 @ 25°C / 77°F

NTC 20KΩ @ 25°C / 77°F

NTC 3KΩ @ 25°C / 77°F

RTD Pt1000 1000Ω @ 0°C / 32°F

RTD N11000-891 891Ω @ 0°C / 32°F

(Other elements on request)

Accuracy:

NTC thermistor 0...70°C ± 0.2°C / 32...158°F ± 0.36°F

Pt1000 Class B IEC751, ± 0.3°C / ± 0.5°F @ 0°C / 32°F

Ni1000 DIN 43760, ± 0.5°C / ± 0.9°F @ 0°C / 32°F

Range:-40...125°C / -40...257°F

Approvals: CE, RoHS compliant

Warranty: 5-year limited warranty

product series features

Made in the USA
Available in 4 in, 6 in, 8 in, 12 in, 18 in lengths
AISI 316 stainless steel temperature probe
Patent Pending Quick Connect System eliminates wire nuts
NTC thermistors and RTD elements available
Compatible with any control system
CE and RoHS compliant
5 year limited warranty

more information & related documents

Series Description

The Tasseron Q-Duct Series are high quality universal Duct Temperature Sensors with galvanized steel enclosures and stainless steel AISI 316 probe for both commercial and industrial applications. Available measuring elements interface with all major control manufactures. Accurate thermistors and RTD's ensure low drift and are double encapsulated to guarantee the highest reliability. The installed, high quality, closed cell foam ensures sealing of the probe insert and absorption of vibrations. The dual-slotted, Quick Attach foamed cover and patent pending Quick Connect System make installations easy and reduce installation costs.

Kele Description

AVERAGE MINI NTC 10K-2 18IN RIGID

Manufacturer

Tasseron Sensors
