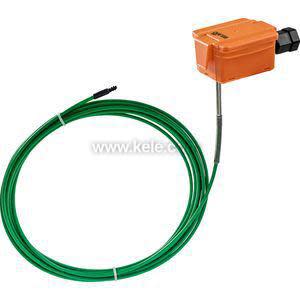

01MT-5M4 | Belimo | Temperature Sensors & Transmitters

Supply Voltage:

22DT-52x 15...24 VDC, ±10%, 0.4 W; 24 VAC, ±10%, 0.8 VA

22DT-54x 15...24 VDC, ±10%, 0.5 W

Enclosure: NEMA 4X/IP65

Cover: Lexan, Belimo orange NCS S0580-Y6OR

Mounting: Mounting plate, installation kit, cable gland nut conduit 1/2" NPT, mounting brackets

Probe Length: Various lengths available in 10 ft., 20 ft.

Probe Material: Stainless steel

Sensor Element: PT100, PT1000, Ni1000, NTC 10k2, NTC 10k3, NTC 20k

Signal Output (Active Temperature): 22MT-52x DC0-5/10V, 22MT-54x 4-20mA

Signal Output: 01MT-5Bx PT1000, 01MT-5Ex Ni1000 (JCI), 01MT-5LxNTC10k2, 01MT-5MxTC10k3, 01MT-5QxNTC20k

Accuracy: passive sensors depending on used type

PT.. = ±0.5°F @ 32°F ±0.3°C @ 0°C

Ni.. = ±0.7°F @ 32°F ±0.4°C @ 0°C

NTC.. = ±0.3°F @ 77°F ±0.2°C @ 25°C

±1% of measuring range @ 70°F 21°C

Measuring Range:

Active sensor: range selectable

Attention: Max. measuring temperature is restricted by max. medium temperature (see Safety data)

Setting range °C range °F Factory setting:

S0 -50°C-50°C, -30°F -130°F

S1 -10°C - 120°C, 0°F - 250°F

S2 0°C - 50°C, 40°F - 140°F

S3 0°C - 250°C, 30°F - 480°F

S4 -15°C - 35°C, 0°F - 100°F

S5 0°C - 100°C 40°F - 240°F

S6 -20°C - 80°C, 40°F - 90°F Yes

S7 0°C - 160°C, 0°F - 150°F

Operating Humidity: 85% RH non-condensing

Operating Temperature: -30°F to 120°F -35°C to 50°C

Weight: 0.24 lbs.

Approvals: CE compliant, ISO 9001, UL 2043, UL 50

Warranty: 5 year
