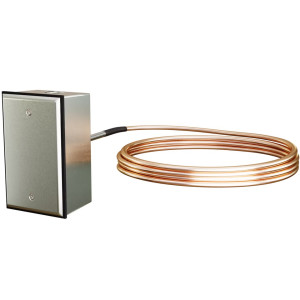

A/20K-A-12'-BB | ACI | Temperature Sensors & Transmitters

Accuracy:

Thermistor: ±0.36°F (0.2°C)

RTD: ±0.50°F (0.28°C)

Sensor Type:

Thermistor: 10 kΩ Type II & III, 20 kΩ, 100 kΩ

RTD: 100Ω, 1000Ω 385 curve

Temperature Range: -40° to 302°F (-40° to 150°C)

Stability:

Thermistor: 0.24°F (0.13°C) over five years

RTD: <±0.1°C drift

Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)

Enclosure Rating: NEMA 1, Galvanized metal box

Wiring Terminations: 10" of 22 AWG wire or terminal strip

Weight:

12': 1.2 lb (0.54 Kg)

24': 2.12 lb (0.96 Kg)

Approvals: RoHs

Warranty: 5 years
