A/1K-LTS-30' | ACI | Temperature Sensors & Transmitters

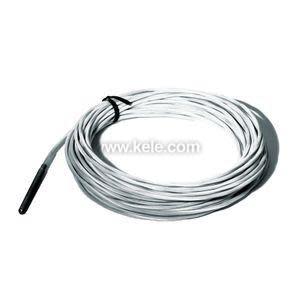

RTD, Freezer, 1,000 Ω, No Enclosure, 30'
Brand:ACI
MPN:A/1K-LTS-30'
SKU:A/1KLTS30
List Price:
$288.90
Today's Price:
$150.23
Log in for customized pricingproduct specifications
Application
Freeze
Probe Length
2 in
Sensor Element
1K Platinum RTD 385
Type
RTD
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: ±0.36°F (0.2°C)
RTD: ±0.50°F (0.28°C)
Sensor Type:
Thermistor: 10 kO Type II & III, 20 kO, 100 kO
RTD: 100O, 1000O 385 curve
Temperature Range: -40° to 302°F (-40° to 150°C)
Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: <±0.1°C drift
Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)
Enclosure Rating: NEMA 1, Galvanized metal box
Wiring Terminations: 10" of 22 AWG wire or terminal strip
Weight:
12': 1.2 lb (0.54 Kg)
24': 2.12 lb (0.96 Kg)
Approvals: RoHs
Warranty: 5 years
product series features
- Lengths of 12 ft (3.7 m) or 24 ft (7.3 m)
- Five-year warranty
- Bendable copper
more information & related documents
Series Description
The ACI Series Averaging Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The averaging sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Averaging sensors come with a foambacked handy box and in 12 ft (3.7m) or 24 ft (7.3) lengths. The ACI Averaging Sensor should be mounted across a duct in a serpentine fashion with bends in a smooth ark using an M-648-K or CC-1G-K clip. The RTD probe is sensitive for the entire length, while the thermistor is sensitive at nine evenly spaced sensor locations. Use standard metal screws to secure to the duct.
Kele Description
1K OHM PLAT FRZR PROBE 2" 30' PLENUM LEADS
Manufacturer
ACI
