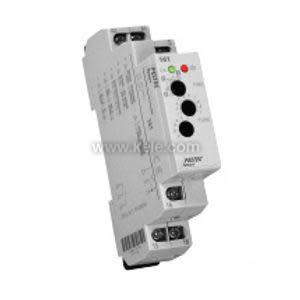

161 | Peltec | Relays & Contactors
6 Timing Modes AC/DC Universal Voltage Adj 0.1S-10H
Brand:Peltec
MPN:161
SKU:161
List Price:
$171.00
Today's Price:
$88.92
Log in for customized pricingproduct specifications
Coil Voltage
12 VAC, 12 VDC, 24 VAC, 24 VDC, 120 VAC, 240 VAC, 208 VAC
Contact Rating
8 A
Contact Type
SPDT
Mount
DIN rail
Type
Universal AC/DC
Current Rating
8 A
Number of Relays
1
product series specifications
Input:
161 24-240 VAC and 24 VDC
All Others 12-240 VAC/VDC
Frequency: 50/60Hz
Rated Current:
102 & 191 16A/AC
161, 182 & 193 8A/AC
Relay Type:
102, 161 & 191 SPDT
193 3PDT
182 DPDT
Input Points: A1 - A2
Inrush Current:
102 & 191 30A/ <3s
182 & 193 10A/ <3s
Timing Functions:
102 Dual (On Time first or Off Time first)
161 6 selectable modes; range-able 0.1 second-10 hours
182 2 selectable modes; True Off and Delay on Make
191 & 193 Multifunction; 10 selectable modes
Setting Accuracy: 5%
Repeatability: 0.2%
Operating Temperature: -4° to 131°F (-20° to 55°C)
Mounting: DIN rail
Wire Size: 14AWG
Dimensions: 0.70"W x 3.54"L x 2.52"H (1.8 x 9.0 x 6.4 cm)
Mechanical Life: 30 million operations
Approvals: UL Listed #E352333, CE, RoHS
product series features
- Choice of timing modes (dual or multifunction)
- Time adjustments by rotary switches or potentiometer
- LED output indicator
more information & related documents
Series Description
The Peltec 100 Series DIN rail mount time delay relays offer a dual adjustable recycle timer with universal input voltage and a multifunction timer with several different timing modes. All are compact in size and are ideal for panel shops and factory automation applications.
Kele Description
6 TIMING MODES AC/DC UNVRSL VLTGADJ 0.1S-10H
Manufacturer
Peltec
Peltec 102 Datasheet
