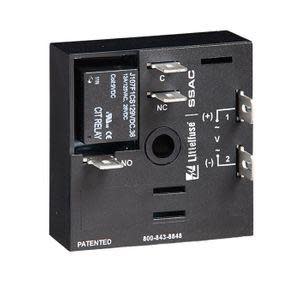

Black square relay with central hole and labeled spade terminals.

KRDM221 | Littelfuse | Relays & Contactors

Timer-DelayOnMake 24VAC/DC Relay Adjustable 1-100s 2x2

Brand:Littelfuse

MPN:KRDM221

SKU:KRDM221

List Price:

$196.00

Today's Price:

$101.92

catalog page

Lead time of > 15 days. Chat with Kele experts now

product specifications

Type

Delay On Make

Number of Relays

Contact Rating

10 A

Current Rating

10 A

Contact Type

SPDT

Coil Voltage

24 VAC,120 VAC,208 VAC,240 VAC,277 VAC,24 VDC

Mount

DIN rail,Surface

product series specifications

Operating Humidity: 95% RH non-condensing

Operating Temperature:

KRDM: -40° to 140°F (-40° to 60°C)

KRPS: -4° to 140°F (-20° to 60°C)

TMV8000: -4 to 158°F (-20 to 70°C)

Storage Temperature:

KRDM/KRPS: -40° to 185°F (-40° to 85°C)

TMV8000: -22 to 185°F (-30 to 85°C)

Mounting: Surface mount with one #10 screw

Dimensions: 2"W x 2"H x 1.21"D (5.08 x 5.08 x 3.07 cm)

Approvals: CE, CSA, UR File #E57310

Warranty: 10 years

product series features

Compact time delay relay
10A, SPDT output contacts
0.5% repeat accurcy
0.5% factory calibration
UR File #57310

more information & related documents

Series Description

The KRDM Series is a compact time delay relay measuring only 2 in (50.8 mm) square. Its solidstate timing circuit provides excellent repeat accuracy and stability. Encapsulation protects against shock, vibration, and humidity. The KRDM Series is a cost effective approach for OEM applications that require small size, isolation, reliability, and long life.

Kele Description

DOM 24VAC/DC 10A SPDT ADJ 1-100 SECONDS

Manufacturer

Littelfuse
