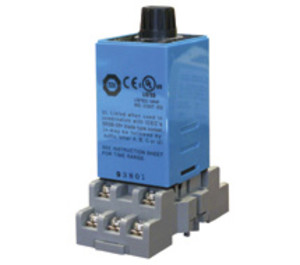

GT3W-A11AF20 | IDEC | Relays & Contactors

TIMER RECYCLE,8-PIN,100-240VAC

Brand:IDEC

MPN:GT3W-A11AF20

SKU:GT3W-A11AF20

List Price:

$-.--

Today's Price:

$-.--

catalog page

Lead time of 0 days. Chat with Kele experts now

product specifications

Coil Voltage

120 VAC, 240 VAC

Contact Rating

10 A

Contact Type

DPDT

Mount

Surface

Type

Multi-Function

Current Rating

10 A

Number of Relays

product series specifications

Time Delay Settings: 0.1 sec to 600 hours

Contact Configuration: 2 Form C, DPDT (delay outputs)

Load Type: 10A resistive @ 240 VAC, 30 VDC; 7A inductive @ 240 VAC, 30 VDC; 1/6 hp @ 120 VAC; 1/3 hp @ 240 VAC

Input:

AD models 24 VAC/VDC (3.5 VA/1.7W)

AF models 120VAC (6.6 VA)

Operating Temperature: -4° to 149°F (-20° to 65°C)

Operating Humidity: 35% to 85% RH

Reset Time: 100 mS maximum

Accuracy: ±0.2%, ±20 mS

Setting Error: ±10% maximum

Insulation Resistance: 100 MO minimum (500 VDC)

Dielectric Strength:

Between power and output terminals: 2000 VAC, 1 minute

Between contacts of different poles: 2000 VAC, 1 minute

Between contacts on the same pole: 1000 VAC, 1 minute

Electrical Life: 500,000 operations (resistive)

Mechanical Life: 50 million operations

Weight: 0.2 lb (0.091 kg)

Approvals: UL listed, File #E66043, CE

Warranty: 1 year

product series features

Selectable 10 timing functions and 20 time ranges
Time delay settings from 0.1 second to 600 hours
Two Form C delayed output contacts
Space-saving package
High repeat accuracy of 0.2%
On and timing out LED indicators
Standard 8-pin, 11-pin, or 11-blade relay socket
UL Listed, CE certified

more information & related documents

Series Description

The RTE Series Multi-Function Electronic Timers are socket-mounted adjustable time delay relays available in two function groups, making them ideal for Building Automation Systems, BAS. The timer functions and time ranges are easily selected by setting external switches. The knob on the front of the timer is used to set the precise delay period within the selected time range. Timer functions RTE-B1/RTE-P1 are power-triggered and include ON-Delay, Interval, OFF-Cycle, ON-Cycle. Timer functions for RTE-B2/RTE-P2 are signal triggered and include ON-Delay, OFF-Cycle, OFF-Delay, ON-Cycle and Single-Shot.

Kele Description

TIMER RECYCLE,8-PIN,100-240VAC

Manufacturer

IDEC
