438USA | Artisan Controls | Relays & Contactors
Universal/Delay On Make
Brand:Artisan Controls
MPN:438USA
SKU:438USA
product specifications
Coil Voltage
24 VAC, 120 VAC, 240 VAC, 208 VAC, 277 VAC
Contact Type
SPST
Mount
Surface
Type
Delay On Make
Number of Relays
1
product series specifications
Time Delay Settings: 0.1 sec to 600 hours
Contact Configuration: 2 Form C, DPDT (delay outputs)
Load Type: 10A resistive @ 240 VAC, 30 VDC; 7A inductive @ 240 VAC, 30 VDC; 1/6 hp @ 120 VAC; 1/3 hp @ 240 VAC
Input:
AD models 24 VAC/VDC (3.5 VA/1.7W)
AF models 120VAC (6.6 VA)
Operating Temperature: -4° to 149°F (-20° to 65°C)
Operating Humidity: 35% to 85% RH
Reset Time: 100 mS maximum
Accuracy: ±0.2%, ±20 mS
Setting Error: ±10% maximum
Insulation Resistance: 100 MO minimum (500 VDC)
Dielectric Strength:
Between power and output terminals: 2000 VAC, 1 minute
Between contacts of different poles: 2000 VAC, 1 minute
Between contacts on the same pole: 1000 VAC, 1 minute
Electrical Life: 500,000 operations (resistive)
Mechanical Life: 50 million operations
Weight: 0.2 lb (0.091 kg)
Approvals: UL listed, File #E66043, CE
Warranty: 1 year
product series features
- Encapsulated digital-timing circuitry
- Switch-selectable delay
- Low cost
- Transient protected
- 1A output rating
more information & related documents
Series Description

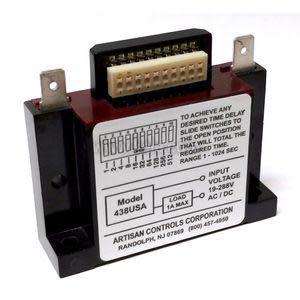

The Model 438USA Delay On Make / Interval Timers are universal switch-adjustable time capsules in a solid state timer. These interval timers provide delay on make (ON-Delay) control of a load device operating from 19-288 volt AC/DC. The Model 438USA timer controls up to a 1A load, such as a relay or solenoid. The Model 438USA-INT universal switch-adjustable time capsule is an all solid-state timer that provides interval timing control of a load device operating from 24 to 240 volt AC. The 438USA-INT controls up to a 1A load, such as a relay or solenoid.
Kele Description
UNIVERSAL/DELAY ON MAKE
Manufacturer
Artisan Controls
Related Documents
438USA Datasheet
