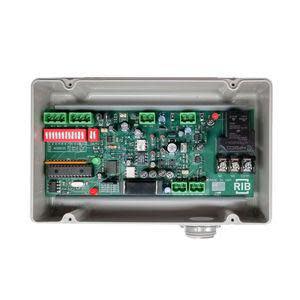

RIBTW24B-BCAO | Functional Devices | Relays & Contactors
Enclosed BACnet® MS/TP Network Relay Device, One Binary Output + Override, One Binary Input, One Analog Output, One Analog Input
Brand:Functional Devices
MPN:RIBTW24B-BCAO
SKU:RIBTW24B-BCAO
List Price:
$413.00
Today's Price:
$214.76
product specifications
Coil Voltage
24 VAC, 24 VDC
Contact Rating
20 A
Contact Type
SPDT
Feature
LED
LCD
Surface
Application
MT4-4
Communications
BACnet
Housing Rating
NEMA 1
Power Input
176 mA @ 24 VAC, 150 mA @ 24 VDC
Type
BACnet
Mounting Type
Surface
Number of Relays
1
Amps
20 A
product series specifications
- Supply Voltage:
- 24 VAC @ 111 mA, 24 VDC @ 81 mA, 120 VAC @ 96 mA
- Contact Rating:
- 20A resistive @ 277 VAC, 20A ballast N.O. @ 120/277 VAC, N.C. @ 277 VAC, 10A tungsten N.O. @ 120 VAC, 1110 VA pilot duty @ 277 VAC, 770 VA pilot duty @ 120 VAC, 2 hp @ 277 VAC, 1 hp @ 120 VAC
- Frequency:
- 50/60 Hz
- Relay Type:
- SPDT
- Duty:
- Continuous duty
- Life Expectancy:
- 10 million cycles minimum
- Baud Rate:
- 9600, 19200, 38400, 57600, 76800, and 115200
- LED Indication:
- Green: network status, Red: relay status
- Operating Temperature:
- -30° to 140°F (35° to 60°C)
- Operating Humidity:
- 5% to 95% non-condensing
- Housing Type:
- NEMA 1, plenum rated
- Conduit Hub:
- 1/2" NPT
- Dimensions:
- 4" H x 4" W x 1.8" D (10.2 x 10.2 x 4.6 cm); 1/2‚Ä= NPT nipple
- Approvals:
- UL listed file #E68805, CE certified, BACnet certified
- Weight:
- 0.83 lb (0.38 Kg)
- Warranty:
- 1 year
product series features
- Enclosed BACnet relay with 20A contacts
- Additional dry contact input (powered by Class 2 circuit)
- LED indication of network status and relay status
- UL listed and BACnet compatible, CE
more information & related documents
Series Description

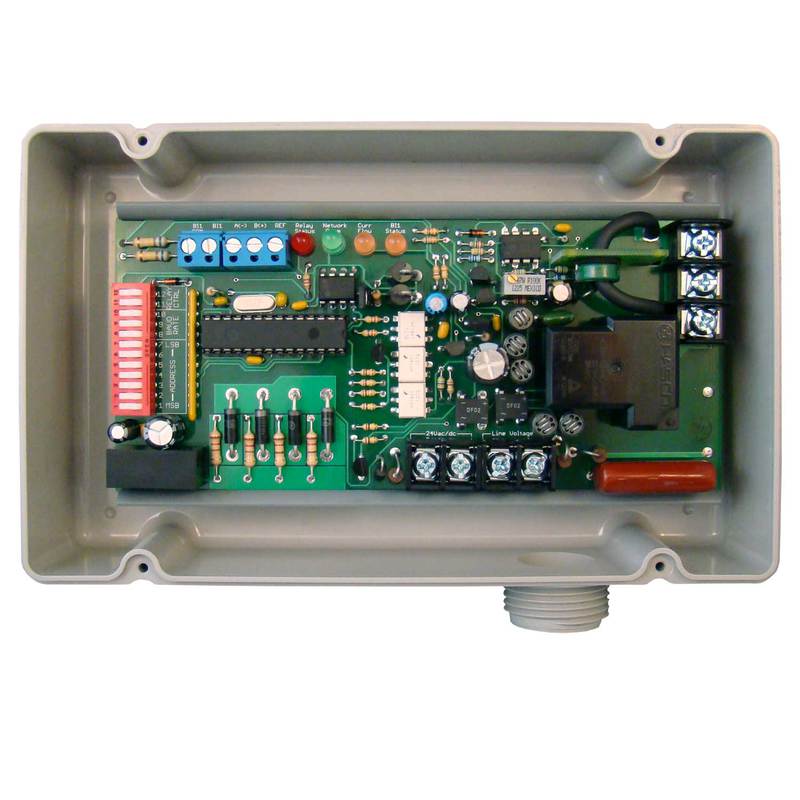

The Functional Devices Model RIBTW2401B-BC and RIBTW2402B-BC BACnet Relay in a Box are open-protocol relays controlled from a remote location using a BACnet network. The relay is powered locally, and communication with the network is over a twisted pair of wires. Using standard BACnet objects, the relay can be commanded on and off over the network and the relay state communicated back. A separate digital input is provided to communicate the status feedback signal from a current switch (or other switched feedback device) to the BACnet network.
Kele Description
BACNET ENC RLY 20A 24VAC/DC; ANALOG OUT
Manufacturer
Functional Devices
Network Compatible Relays Datasheet
