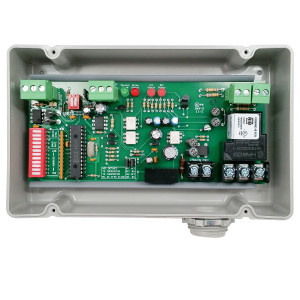

RIBTW24B-BCAI | Functional Devices | Relays & Contactors
Enclosed BACnet® MS/TP Network Relay Device, with Binary Output Set Point Function, One Binary Output, Two Binary Inputs, One Analog Input
Brand:Functional Devices
MPN:RIBTW24B-BCAI
SKU:RIBTW24B-BCAI
List Price:
$446.00
Today's Price:
$231.92
Log in for customized pricingproduct specifications
LCD
Surface
Communication Protocol
BACnet
Type
Power
Contact Type
SPDT
Power Input
111 mA @ 24 VAC,81 mA @ 24 VDC
Number of Relays
1
Contact Rating
20 A
Current Rating
20 A
Enclosure Rating
NEMA 1
Coil Voltage
24 VAC,24 VDC
Feature
LED
Application
MT212-6
Mount
DIN rail,Wall
product series specifications
Relays: (1)
Contact Type: SPDT Continuous Duty Coil
Expected Relay Life:10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range:5 to 95% (noncondensing)
Operate Time:18ms
Green LED: Network Communication
Red LED: Relay Status
Relay Override Switch: DIP Switch Control
Network Media: Twisted Pair 22-24AWG, shielded recommended
product series features
- DIP Switch Control
- Device ID can be changed via network command
- NEMA 1 Housing ensures durability and protection while also promoting compliance and safety.
- BACnet MS/TP Network facilitates a seamless integration with complicated building management infrastructure.
more information & related documents
Series Description
Optimize control systems with RIB® Intelligent Field Devices and our cost-effective RIB BACnet® relay solutions. Create more control points without incurring the cost of a larger, more expensive controller. Ideal for projects where control points are dispersed across wide areas, these network-compatible devices are prepackaged to reduce the hassle of assembling separate components. Our network-ready devices simplify configuration and setup, saving time and resources. The prepackaged configuration allows each unit to be added rapidly, enhancing project timelines and reducing downtime.<br>
Kele Description
BACNET ENCLOSED RELAY HI/LOW SEP 20AMP 24VAC/DC ANALOG IN
Manufacturer
Functional Devices
