RIBTW2401B-BC | Functional Devices | Relays & Contactors

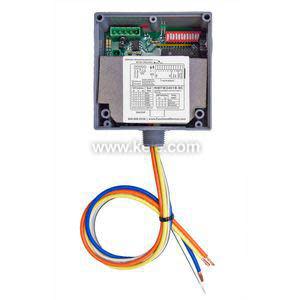

Enclosed BACnet® MS/TP Network Dual I/O Device, One Binary Output, One Binary Input, 24Vac/dc/120Vac Input
Brand:Functional Devices
MPN:RIBTW2401B-BC
SKU:RIBTW2401B-BC
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Coil Voltage
24 VAC, 24 VDC, 120 VAC
Contact Rating
20 A
Contact Type
SPDT
Enclosure Rating
NEMA 1
Feature
LED
LCD
Surface
Mount
DIN rail, Wall
Power Input
111 mA @ 24 VAC, 96 mA @ 120 VAC, 81 mA @ 24 VDC
Type
Power
Communication Protocol
BACnet
Current Rating
20 A
Number of Relays
1
product series specifications
Relays: (1)
Contact Type: SPDT Continuous Duty Coil
Expected Relay Life:10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range:5 to 95% (noncondensing)
Operate Time:18ms
Green LED: Network Communication
Red LED: Relay Status
Relay Override Switch: DIP Switch Control
Network Media: Twisted Pair 22-24AWG, shielded recommended
product series features
- DIP Switch Control
- Device ID can be changed via network command
- NEMA 1 Housing ensures durability and protection while also promoting compliance and safety.
- BACnet MS/TP Network facilitates a seamless integration with complicated building management infrastructure.
more information & related documents
Series Description
Optimize control systems with RIB® Intelligent Field Devices and our cost-effective RIB BACnet® relay solutions. Create more control points without incurring the cost of a larger, more expensive controller. Ideal for projects where control points are dispersed across wide areas, these network-compatible devices are prepackaged to reduce the hassle of assembling separate components. Our network-ready devices simplify configuration and setup, saving time and resources. The prepackaged configuration allows each unit to be added rapidly, enhancing project timelines and reducing downtime.<br>
Kele Description
BACNET RELAY IN A BOX
Manufacturer
Functional Devices
RIBTW2401B-BC Datasheet
