RIBMNWD12-BCDI-5PAK | Functional Devices | Relays & Contactors

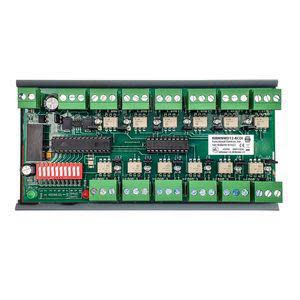

2.75 Track Mount BACnet® MS/TP Network Input Device, Twelve Binary Inputs (Voltage or Dry Contacts), Pack of 5

Brand:Functional Devices

MPN:RIBMNWD12-BCDI-5PAK

SKU:RIBMNWD12BCDI5P

List Price:

$-.--

Today's Price:

$-.--

product datasheet

catalog page

Lead time of 0 days. Chat with Kele experts now

product specifications

Coil Voltage

24 VAC, 24 VDC

Contact Rating

30 A

Feature

LED

LCD

Track

Application

MT212-6

Mount

DIN rail, Surface

Power Input

41 mA @ 24 VDC, 53 mA @ 24 VAC

Type

BACnet

Communication Protocol

BACnet

Current Rating

30 A

product series specifications

Supply Voltage: 24 VAC @ 111 mA, 24 VDC @ 81 mA, 120 VAC @ 96 mA

Contact Rating: 20A resistive @ 277 VAC, 20A ballast N.O. @ 120/277 VAC, N.C. @ 277 VAC, 10A tungsten N.O. @ 120 VAC, 1110 VA pilot duty @ 277 VAC, 770 VA pilot duty @ 120 VAC, 2 hp @ 277 VAC, 1 hp @ 120 VAC

Frequency: 50/60 Hz

Relay Type: SPDT

Duty: Continuous duty

Life Expectancy: 10 million cycles minimum

Baud Rate: 9600, 19200, 38400, 57600, 76800, and 115200

LED Indication: Green: network status, Red: relay status

Operating Temperature: -30° to 140°F (35° to 60°C)

Operating Humidity: 5% to 95% non-condensing

Housing Type: NEMA 1, plenum rated

Conduit Hub: 1/2" NPT

Dimensions: 4" H x 4" W x 1.8" D (10.2 x 10.2 x 4.6 cm); ½" NPT nipple

Approvals: UL listed file #E68805, CE certified, BACnet certified

Weight: 0.83 lb (0.38 Kg)

Warranty: 1 year

product series features

Enclosed BACnet relay with 20A contacts
Additional dry contact input (powered by Class 2 circuit)
LED indication of network status and relay status
UL listed and BACnet compatible, CE

more information & related documents

Series Description

The Functional Devices Model RIBTW2401B-BC and RIBTW2402B-BC BACnet Relay in a Box are open-protocol relays controlled from a remote location using a BACnet network. The relay is powered locally, and communication with the network is over a twisted pair of wires. Using standard BACnet objects, the relay can be commanded on and off over the network and the relay state communicated back. A separate digital input is provided to communicate the status feedback signal from a current switch (or other switched feedback device) to the BACnet network.

Kele Description

BNET PANEL MNT DEVICE 2.75IN 12 DIGITAL INPUTS-5PK

Manufacturer

Functional Devices
