RIC-2 | | Relays & Contactors

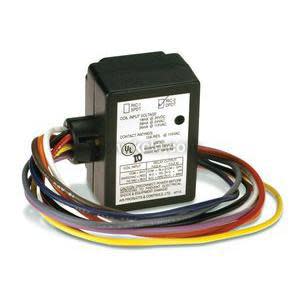

Spud Mounted Multi-voltage relay module, 24 VAC/VDC, 115 VAC, DPDT with 6 Flying Leads

Brand:

MPN:RIC-2

SKU:RIC-2

List Price:

$-.--

Today's Price:

$-.--

product datasheet

catalog page

Lead time of 0 days. Chat with Kele experts now

product specifications

Coil Voltage

24 VAC, 24 VDC, 115 VAC

Contact Rating

7A @ 28 VDC, 10A @ 115 VAC

Contact Type

1-DPDT

Feature

LED

LCD

Junction Box

product series specifications

Coil Rating: 24 VAC @ 39 mA, 24 VDC @ 18 mA, 115 VAC @ 26 mA

Contact Rating:

RIC-1 SPDT, Form C, 10A @ 115 VAC, 7A @ 28 VDC

RIC-2 DPDT, Form C, 10A @ 115 VAC, 7A @ 28 VDC

Wire Size: 12" (30.5 cm), 18 AWG

Operating Temperature: 32° to 120°F (0° to 49°C)

Mounting: Hub mounting through 1/2" conduit knockout

Dimensions: 2.5" H x 1.75" W x 1.3" D (6.3 x 4.4 x 3.3 cm)

Approvals: UL listed File #S3403, CSFM, MEA

Weight: 0.15 lb (0.068 kg)

Warranty: 1 year

product series features

Multi-voltage input
Small size
Twist-on wire connectors are included
LED indication

more information & related documents

Series Description

The AP RIC Series multi-voltage relays provide Form C contacts rated for up to 10A. These devices are ideal for applications where remote relays are required for control or status feedback. The red LED indicates the relay coil is energized. The RIC Series is suitable for use with HVAC, temperature control, fire alarm, security, building automation, and lighting control systems.

Kele Description

MULTI-VOLTAGE RELAY MODULE, DPDT
