P7LF-06 | Omron | Relays & Contactors

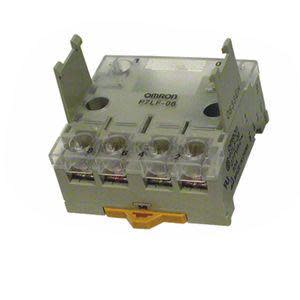

Din Rail/Surface Mount 6 Position Relay Socket For G7L Relays
Brand:Omron
MPN:P7LF-06
SKU:P7LF-06
List Price:
$61.00
Today's Price:
$31.72
Log in for customized pricingproduct specifications
Coil Voltage
120 VAC
Mount
DIN rail, Surface
Type
Socket
Current Rating
10 A
product series specifications
Coil Voltage: 24V, 26.4V maximum,120V 50/60 Hz.132V maximum
Coil Power: AC: 2.5 VA,DC: 2.0 W
Pull In Voltage: 18V, 75V
Drop Out Voltage: 3.6V, 18V, 20V
Contact Rating:
G7L-1A: Resistive: 30A, 277 VAC General purpose: 25A, 277 VAC 30A 120 VAC Tungsten: 1.5 kW, 120 VAC Horsepower: 1.5 hp, 120 VAC 3 hp, 277 VAC
G7L-2A: Resistive: 25A, 277 VAC General purpose: 25A, 277 VAC 25A 120 VAC Tungsten 1.3 kW, 120 VAC Horsepower 1 hp, 120 VAC 2 hp, 277 VAC
Contact Resistance: 50 mO maximum
Terminals: 0.25" x 0.031" quick connects
Contact Material: Silver cadmium oxide
Dielectric Strength: 2000 VAC between contacts, 4000 VAC between coil and contacts
Operate Time: 30 mS maximum
Release Time: 30 mS maximum
Operating Temperature: -13° to 140°F (-25° to 60°C):
Mounting: Top-mount cover with slotted tabs or DIN rail surface-mount socket with screw terminals
Approvals: UL-recognized component, File #E41643: CSA certified, File #LR35535: CE certifed
Weight: 0.2 lb (0.091 kg)
Warranty: 1 year
product series features
- High power capability
- Small size
- Low cost
- Push-to-test button
- Optional DIN rail screw terminal socket
more information & related documents
Series Description
The Omron G7L Series relays are heavy duty power relays commonly used for controlling refrigeration, HVAC equipment, heater loads, and lighting controls. High-power handling capability up to 30A, small size, and low cost characterize these relays. They are available in single and double pole models and are surface mounted or DIN rail mounted with the PL7F-06 socket.
Kele Description
DIN RAIL/SURFACE MOUNT SOCKET FOR G7L RELAYS
Manufacturer
Omron
Related Documents
G7L Series Data Sheet
