P2CF11 | Omron | Relays & Contactors

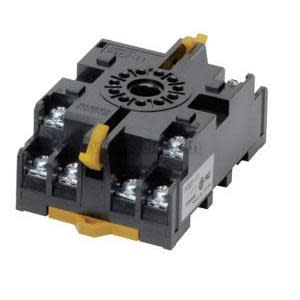

Square Relay Socket, 11 Pin, Front-Mounting

Brand:Omron

MPN:P2CF11

SKU:P2CF-11

List Price:

$50.24

Today's Price:

$26.12

Lead time of > 15 days. Chat with Kele experts now

product datasheet

catalog page

product specifications

Application

Industrial Machine Control, Control Panel, Energy Management

Mount

Surface

Type

Socket

product series specifications

Rated Voltage: 250V

Rated Current: 10A, 5A, 15A

Terminals: M3.5 screws with captive wire clamps

Dielectric Strength: 1500V

Wire Size: Up to two 12 AWG

Materials Of Construction: Polyphenylene

Hold Down Clip or Spring: PFC-A1, PYC-A1

Mounting: DIN rail or surface mount

Approvals: UL-recognized component, File #E87929; CSA certified, File #LR31928; CE certified

product series features

Use with Omron LY / MK / G2R-S relays
Screw terminals with captive wire clamp
Surface or DIN rail mount
UL recognized, CSA certified and CE approved

more information & related documents

Series Description

The Omron PTF and PF Series of relay sockets are for use with the Omron LY / MK Series Relays. The P2RF is for use with the G2R-S relays. The PTF and PF Series include both blade and pin style sockets and are available for one, two, three, and four pole relays. The P2RF comes with a built-in relay hold down mechanism. All of these sockets can be DIN rail or surface mounted.

Kele Description

TRACK MOUNTED SOCKET

Manufacturer

Omron
