SH1B-05 | IDEC | Relays & Contactors

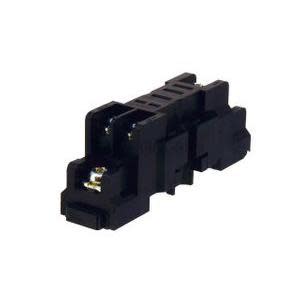

Relay Socket DIN Rail Mount, Screw Type, SP
Brand:IDEC
MPN:SH1B-05
SKU:SH1B-05
product specifications
Contact Rating
30 A
Application
Industrial Machine Control, Control Panel, Energy Management
Mount
DIN rail, Panel, PCB
Type
Socket
Accessory Type
5 Pin
product series specifications
Rated Voltage: 250V, 300V
Rated Current: 10A, 12A, 8A
Wire Size: Two 12 AWG, Two 14 AWG
Socket Type: Blade, DIN rail or surface mount
Hold Down Clip or Spring:
Spring: SYS-02F1, SY4S-02F1, SH3B05F1, SH4B-02F1, SR2B-02F1 (RR2P only), SR3B-02F1 (RR3PA only), SR3B-02F1 (RR only)
Clip: SFA-101, SFA-202, SFA-101, SFA-202, SFA-101, SFA-202, SFA-101, SFA-202, SFA-203 (RTE-P1 only), SFA-202 (RTE-P2 only), SFA-202 (RTE-B only)
Lever: SJ9Z-C1 (provided)
Approvals: UL recognized File #E62437, CSA certified File #LR35144e, CE, UL recognized File #E62437, CSA certified File #LR84913, CE
Weight: 0.06 lb up to 0.16 lb
product series features
- Use with IDEC RH / RR / RJ relays and RTE timers
- Screw terminals with captive wire clamp
- Surface or DIN rail mount
- UL recognized, CSA certified and CE approved
more information & related documents
Series Description
The IDEC SH and SR Series relay sockets are for use with the IDEC RH / RR Series relays and RTE Series timers. The SH and SR Series include both blade and pin style sockets and are available for one, two, three and four pole relays. The SH and SR sockets can be DIN rail or surface mounted.The SJ Series of IDEC relay sockets are for use with the IDEC RJ1S and RJ2S Series relays. They can be DIN rail or surface mounted.
Kele Description
RELAY SOCKET, 5 PIN, PLUG-IN, DIN MOUNT, SCREW TERMINALS, FITS RH1B (SPDT) RELAYS
Manufacturer
IDEC
Related Documents
SH, SJ, SR Series Datasheet
