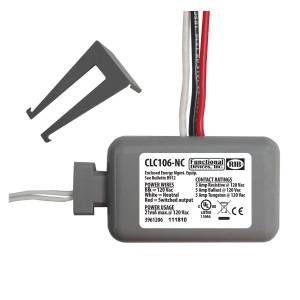

CLC106-NC | Functional Devices | Relays & Contactors
Enclosed Relay 5 Amp SPST-NC, separated class 2 magnetic door switch input, 120 VAC power
Brand:Functional Devices
MPN:CLC106-NC
SKU:CLC106-NC
List Price:
$82.00
Today's Price:
$42.64
Log in for customized pricingproduct specifications
Coil Voltage
120 VAC
Contact Rating
5 A
Contact Type
SPST (NC)
Enclosure Rating
NEMA 1
Approvals
CE Approved, UL Listed, C-UL
Coil Rating
21 mA @ 120 VAC Max
Coil Type
Continuous Duty Coil
Dimensions
1.1 in H x 1.5 in W x 2.9 in D (2.7 x 3.8 x 7.4 cm)
Frequency
50/60 Hz
Indication
LED
Mechanical Life
10 Million Cycles Minimum
Operating Humidity
5 to 95% (noncondensing)
Operating Temperature
-30 to 140 °F (-34 to 60 °C)
Warranty
1 Year
Weight
0.3 lbs (0.12 Kg)
Function Type
Enclosure
product series features
- See Parts and Pricing page for various lighting devices.
- Contact Kele representatives for any question you may have.
more information & related documents
Series Description
Kele offers a wide variety of lighting control products and other related miscellaneous devices from many different vendors. Kele wants to be your one-stop for all of your lighting, HVAC and building automation needs. If you cannot find what you are looking for on the web, please call so that we may provide you with more information.
Kele Description
CLOST LT RLY NC 5A SPST CL2 MAG DR SWTCH INPUT 120
Manufacturer
Functional Devices
Related Documents
301-CES-Rev7
