KIT-781XAXRM4L-24D | Schneider Electric Buildings | Relays & Contactors

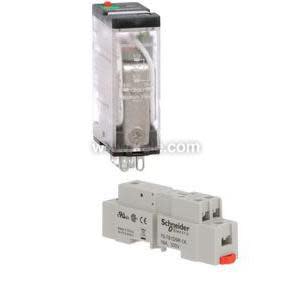

Plug-In Power Relay, Legacy, 15A, SPDT, 24 VDC, Cover with Locking Push Button and LED, Socket 70-781D5R-1A Included
Brand:Schneider Electric Buildings
MPN:KIT-781XAXRM4L-24D
SKU:K781XAXRM4L24D
List Price:
$55.42
Today's Price:
$28.82
Log in for customized pricingproduct specifications
Accessory
16-781C, 16-781C1, 16-781IDC, 16-781SC, 16-DCLIP-1, 70-BSMLG-24, 70-BSMM-24
Coil Voltage
24 VDC
Contact Rating
15 A
Contact Type
SPDT
Feature
Socket, Push Button, Mechanical Flag
LCD
LED
Application
Industrial Machine Control, Control Panel, Energy Management
Mount
DIN rail, Surface
Override Switch
Override Switch
Current Rating
15 A
Number of Relays
1
product series specifications
COIL:
Pull-in Voltage AC/DC: 85% of nominal
Dropout Voltage AC/DC: 15% AC, 10% DC
Maximum Voltage: 110% of nominal
Coil Power AC (60 Hz): 1.6VA, with LED 1.9VA
Coil Power DC: 1.1W, with LED 1.4W
Duty:Continuous
Average Consumption: Standard 1.6VA (AC), 1.1W (DC), With LED 1.9VA (AC), 1.4W (DC)
CONTACTS:
Contact Material: Silver Alloy
Contact Rating:
15A @ 277VAC resistive
10A @ 240 VAC Gen. Purpose
15A @ 28 VDC resistive
1/2 hp @ 120 VAC motor
1 hp @ 277 VAC motor
Minimum Load: 10 mA @ 17 VDC
Terminal Style: Blade
DIELECTRIC STRENGTH:
Coil to Contacts: 2000 Vrms
Across Open Contacts: 1500 Vrms
Pole to Pole:
GENERAL:
Operate Time: 20 msec
Release Time: 20 msec
Electrical Life @ Rated Load: 100,000 operations
Mechanical Life @ No Load: 10,000,000 operations
Operating Position: Any
Operating Temperature: -40° to 131°F (-40° to 55°C)
Weight: 0.064 lb (0.029 kg)
Agency Approvals: UL-recognized component with socket File #E164862, CSA certified, RoHS File 225619, CE: IEC 61810-1
Warranty: 1 year
product series features
- SPDT configuration
- Flag indicator
- Optional LED and momentary/maintained pushbutton
- DIN rail/surface mount or PCB sockets
- Mating socket - 781: 70-781D5R-1A
more information & related documents
Series Description
The Magnecraft 781R Series of SPDT plug-in style relays optimize design flexibility, expedite installation, and simplify maintenance. The 781R Series relays have up to 15A load ratings, multiple contact sets, signature full-feature covers, and UL listing. They are equipped with a mechanical flag indicator to show relay status in the manual or powered condition. Full-featured versions of these relays also include a bi-polar LED to show coil in.on in. or in.off in. status, a push button that allows momentary manual operation without the need for coil power, and a removable lock-down door that can hold the push button and relay contacts in the opposite position.
Kele Description
RELAY, SPDT, 24VDC, LED, OVERRIDE, W/SOCKET
Manufacturer
Schneider Electric Buildings
Related Documents
70-781D5R-1A Datasheet
