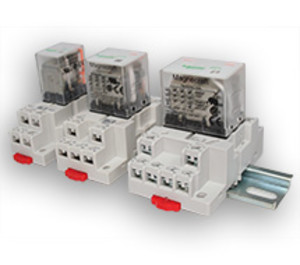

* product series image displayed

788XCXRC24A | Schneider Electric Buildings | Relays & Contactors

RELAY, GENERAL PURPOSE, 10A, 3PDT, 12VAC COIL, CLEAR COVER

Brand:Schneider Electric Buildings

MPN:788XCXRC24A

SKU:788XCXRC24A

List Price:

$97.39

Today's Price:

$50.65

catalog page

Lead time of 5 days. Chat with Kele experts now

product specifications

Coil Voltage

12 VAC

Contact Type

3PDT

Mount

Connection

Type

Accessory

Current Rating

10 A

Accessory Type

Suppressor Module

Number of Relays

product series specifications

Coil Power: 0.9 VA, 0.7 W, 1.2 VA, 0.9 W, 1.5 VA, 1.7 W, 2.0 W

Coil Pull In: AC =85% of nominal, DC =80% of nominal

Drop Out Voltage: >10% of nominal

Contact Rating:

15A @ 150 VAC

10A @ 277 VAC

15A @ 28 VDC

½ hp @ 277 VAC

Maximum Voltage: 110% of nominal

Minimum Load: 100 mA @ 5 VDC or 0.5W

Contact Material: Silver alloy

Dielectric Strength:

Coil to contacts: 2500 Vms

Across open contacts: 1500 Vms

Pole to pole: 2000 Vms

Duty: Continuous

Electrical Life: 100,000 operations @ rated load, 200,000 operations @ rated load, 150,000 operations @ rated load

Mechanical Life: 10,000,000 operations @ no load

Operate Time: 20 msec, 25 msec

Release Time: 20 msec

Operating Temperature: -40° to 158°F (-40° to 70°C)

Approvals: UL-recognized component File #E43641, CSA certified File #E43641, CE: IEC 61810-1

Weight: 0.064 lb (0.025 kg), 0.08 lb (0.036 kg), 0.13 lb (0.06 kg), 0.18 lb (0.08 kg)

Warranty: 1 year

product series features

DPDT, 3PDT, 4PDT configurations
Flag indicator versions
Optional LED and momentary/maintained pushbutton
DIN rail/surface mount sockets
Mating sockets:
782: 70-782D-8-1
783: 70-783D-11-1
784: 70-784D-14-1

more information & related documents

Series Description

The Magnecraft 782, 783, and 784 Series Relays are SPDT, DPDT, 3PDT, and 4PDT plug-in style relays available with common AC and DC coil voltages. Ideal for Building Automation Systems, BAS, these relays are equipped with a mechanical flag indicator to show relay status in the manual or powered condition. With this relay series, full-featured versions also include a bi-polar LED to show coil 'on' or 'off' status and a push button that allows momentary manual operation without the need for coil power. The relay also offers a removable lock-down door that can hold the push button and relay contacts in the operate position.

Kele Description

RELAY, GENERAL PURPOSE, 10A, 3PDT, 12VAC COIL, CLEAR COVER

Manufacturer

Schneider Electric Buildings
