781XAXRC-12D | Schneider Electric Buildings | Relays & Contactors

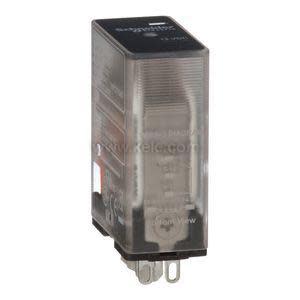

Plug-In Power Relay, Legacy, 15A, SPDT, 12 VDC, Clear Cover
Brand:Schneider Electric Buildings
MPN:781XAXRC-12D
SKU:781XAXRC-12D
product specifications
Coil Voltage
12 VDC
Contact Rating
15 A
Contact Type
SPDT
Application
Industrial Machine Control, Control Panel, Energy Management
Mount
DIN rail, Surface
Current Rating
15 A
Number of Relays
1
product series specifications
Coil Power: 0.9 VA, 0.7 W, 1.2 VA, 0.9 W, 1.5 VA, 1.7 W, 2.0 W
Coil Pull In: AC =85% of nominal, DC =80% of nominal
Drop Out Voltage: >10% of nominal
Contact Rating:
15A @ 150 VAC
10A @ 277 VAC
15A @ 28 VDC
½ hp @ 277 VAC
Maximum Voltage: 110% of nominal
Minimum Load: 100 mA @ 5 VDC or 0.5W
Contact Material: Silver alloy
Dielectric Strength:
Coil to contacts: 2500 Vms
Across open contacts: 1500 Vms
Pole to pole: 2000 Vms
Duty: Continuous
Electrical Life: 100,000 operations @ rated load, 200,000 operations @ rated load, 150,000 operations @ rated load
Mechanical Life: 10,000,000 operations @ no load
Operate Time: 20 msec, 25 msec
Release Time: 20 msec
Operating Temperature: -40° to 158°F (-40° to 70°C)
Approvals: UL-recognized component File #E43641, CSA certified File #E43641, CE: IEC 61810-1
Weight: 0.064 lb (0.025 kg), 0.08 lb (0.036 kg), 0.13 lb (0.06 kg), 0.18 lb (0.08 kg)
Warranty: 1 year
product series features
- DPDT, 3PDT, 4PDT configurations
- Flag indicator versions
- Optional LED and momentary/maintained pushbutton
- DIN rail/surface mount sockets
- Mating sockets:
- 782: 70-782D-8-1
- 783: 70-783D-11-1
- 784: 70-784D-14-1
more information & related documents
Series Description
The Magnecraft 782, 783, and 784 Series Relays are SPDT, DPDT, 3PDT, and 4PDT plug-in style relays available with common AC and DC coil voltages. Ideal for Building Automation Systems, BAS, these relays are equipped with a mechanical flag indicator to show relay status in the manual or powered condition. With this relay series, full-featured versions also include a bi-polar LED to show coil 'on' or 'off' status and a push button that allows momentary manual operation without the need for coil power. The relay also offers a removable lock-down door that can hold the push button and relay contacts in the operate position.
Kele Description
RELAY, SPDT,12VDC
Manufacturer
Schneider Electric Buildings
Related Documents
782 Series Data Sheet
