PF083A-E | Omron | Relays & Contactors

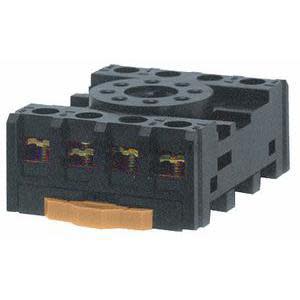

Round Relay Socket, 8 Pin, Front-Mounting
Brand:Omron
MPN:PF083A-E
SKU:PF083A-E
List Price:
$18.00
Today's Price:
$9.36
Log in for customized pricingproduct specifications
Application
Industrial Machine Control, Control Panel, Energy Management
Mount
DIN rail, Surface
Type
Socket
Accessory Type
8 Pin
product series specifications
Rated Voltage: 250V
Rated Current: 10A, 5A, 15A
Terminals: M3.5 screws with captive wire clamps
Dielectric Strength: 1500V
Wire Size: Up to two 12 AWG
Materials Of Construction: Polyphenylene
Hold Down Clip or Spring: PFC-A1, PYC-A1
Mounting: DIN rail or surface mount
Approvals: UL-recognized component, File #E87929; CSA certified, File #LR31928; CE certified
product series features
- Use with Omron LY / MK / G2R-S relays
- Screw terminals with captive wire clamp
- Surface or DIN rail mount
- UL recognized, CSA certified and CE approved
more information & related documents
Series Description
The Omron PTF and PF Series of relay sockets are for use with the Omron LY / MK Series Relays. The P2RF is for use with the G2R-S relays. The PTF and PF Series include both blade and pin style sockets and are available for one, two, three, and four pole relays. The P2RF comes with a built-in relay hold down mechanism. All of these sockets can be DIN rail or surface mounted.
Kele Description
8 PIN RELAY SOCKET
Manufacturer
Omron
Related Documents
PR2F Data Sheet
