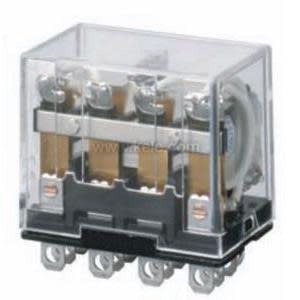

LY4N AC24 | Omron | Relays & Contactors
Relay, Single stable, Single, Plug-in terminal, 24 VAC Coil, Operating indicator LED, Not equipped, 24 VDC 10 A, 110 VAC 10 A, Output 4PDT (24 VDC 10 A)
Brand:Omron
MPN:LY4N AC24
SKU:LY4N-AC24
List Price:
$55.00
Today's Price:
$28.60
Log in for customized pricingproduct specifications
Coil Voltage
24 VAC
Contact Rating
10 A
Contact Type
4PDT
LCD
LED
Application
Industrial Machine Control, Control Panel, Energy Management
Mount
DIN rail, Surface
Current Rating
10 A
Number of Relays
1
product series specifications
Min operating voltage: 80% of rated voltage AC, 70% of rated voltage DC
Max continuous applied voltage: 110% of rated voltage AC/DC
Drop-out voltage: AC 30% or more of the rated voltage, DC 10% (LY), 15% (MK, G2R-S) or more of the rated voltage
Contact material:
LY, G2R-S Silver cadmium oxide
MK Silver
Contact resistance: 100 m? maximum
Operating time: 30 ms maximum
Release time: 25 ms maximum
Min load: LY, G2R-S 100 mA/5 VDC, MK 10 mA/1 VDC
Agency approvals: UL-recognized component, File #E41643 (LY, G2R-S), #E41515 (MK); CSA certified, File #LR31928 (LY, G2R-S); #LR41408 (MK); CE certified
Warranty: 1 Year
*See Data Sheet for Contact Ratings
product series features
- Blade-style, pin-style and compact models
- DIN rail or surface mount
- UL recognized, CSA certified, CE certified
more information & related documents
Series Description
The Omron general-purpose relays are available in the LY, MK, and G2R-S Series. The LY Series is available in SPDT, DPDT, 3PDT, and 4PDT contact configurations driven by AC or DC coils. It has up to a 15A switching capacity and blade terminals for socket mounting. The MK Series is available in DPDT and 3PDT configurations driven by AC or DC coils and has up to a 10A switch rating. The MK Series has pin-type terminals for socket-mounting and comes standard with a mechanical indicator and push-to-test button. The G2R-S Series is available with SPDT or DPDT contacts rated up to 10A and driven by AC or DC coils. They are socket-mounted, and their small size saves space. They come with a mechanical indicator, optional LED, and lockable test button.
Kele Description
4PDT RELAY 24VAC W/LIGHT
Manufacturer
Omron
Related Documents
G2R-S Data Sheet
