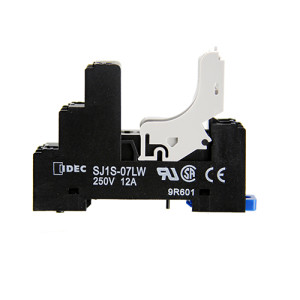

SJ1S-07LW | IDEC | Relays & Contactors
SOCKET FOR RJ1S RELAY
Brand:IDEC
MPN:SJ1S-07LW
SKU:SJ1S-07LW
product specifications
Mount
DIN Rail Mount
Type
Socket
Mounting Type
Din Rail
product series specifications
- Rated Voltage:
- 250V, 300V
- Rated Current:
- 10A, 12A, 8A
- Wire Size:
- Two 12 AWG, Two 14 AWG
- Socket Type:
- Blade, DIN rail or surface mount
- Hold Down Clip or Spring:
- Spring: SYS-02F1; Clip: SFA-101, SFA-202, Spring: SY4S-02F1; Clip: SFA-101, SFA-202, Spring: SH3B05F1; Clip: SFA-101, SFA-202, Spring: SH4B-02F1; Clip: SFA-101, SFA-202, Lever: SJ9Z-C1 (provided), Spring: SR2B-02F1 (RR2P only); Clip: SFA-203 (RTE-P1 only), Spring: SR2B-02F1 (RR2P only); Clip: SFA-202 (RTE-P1 only), Spring: SR3B-02F1 (RR3PA only); Clip: SFA-202 (RTE-P2 only), Spring: SR3B-02F1 (RR only); Clip: SFA-202 (RTE-B only)
- Approvals:
- UL recognized File #E62437, CSA certified File #LR35144e, CE, UL recognized File #E62437, CSA certified File #LR84913, CE
- Weight:
- 0.06 lb (0.03 kg), 0.10 lb (0.05 kg), 0.13 lb (0.06 kg), 0.16 lb (0.07 kg), 0.07 lb (0.034 kg), 0.14 lb (0.06 kg)
product series features
- Use with IDEC RH / RR / RJ relays and RTE timers
- Screw terminals with captive wire clamp
- Surface or DIN rail mount
- UL recognized, CSA certified and CE approved
more information & related documents
Series Description
The IDEC SH and SR Series relay sockets are for use with the IDEC RH / RR Series relays and RTE Series timers. The SH and SR Series include both blade and pin style sockets and are available for one, two, three and four pole relays. The SH and SR sockets can be DIN rail or surface mounted.The SJ Series of IDEC relay sockets are for use with the IDEC RJ1S and RJ2S Series relays. They can be DIN rail or surface mounted.
Kele Description
SOCKET FOR RJ1S RELAY
Manufacturer
IDEC
