RU42S-C-A24 | IDEC | Relays & Contactors

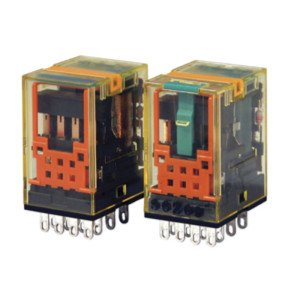

RU Series 4PDT Universal Relay with Indicator
Brand:IDEC
MPN:RU42S-C-A24
SKU:RU42S-C-A24
List Price:
$41.23
Today's Price:
$21.44
Log in for customized pricingproduct specifications
Coil Voltage
24 VAC
Contact Rating
3 A
Contact Type
4PDT
Application
Industrial Machine Control, Control Panel, Energy Management
Approvals
UL, RoHS
Approvals CSA
CSA Certified File #LR35144-135844
Coil Rating
37.5 mA
Dimensions
1.4 in H x 0.5 in W x 1.1 in D (3.5 x 1.2 x 2.7 cm)
Drop Out Voltage
30%
Indication
LED
Mechanical Life
20,000,000 operations minimum
Minimum Current
24 VDC, 5mA
Mount
DIN rail, Surface
Operating Temperature
-67 to 158 °F (-55 to 70 °C)
Operating Time
20ms
Reset Time
20 ms maximum
Termination
Solder/plugin
Type
Power
Warranty
1 Year
Pick Up Voltage
80%
Current Rating
3 A
Number of Relays
1
product series features
- Blade style, pin style, and compact models
- Indicator light and/or check button available
- Surface or DIN rail mount
- UL recognized, CSA certified
more information & related documents
Series Description
The IDEC general-purpose relays are available in the RH Series blade-style relays and the RR Series pin-style relays and the RJ Series compact relays. The RH Series features a 10A switching capacity. They are available in SPDT, DPDT, 3PDT, and 4PDT contact configurations, driven by AC or DC coils, and they have blade terminals for socket mounting. The RR Series has a 10A contact rating. The RR Series relays are available in SPDT, DPDT, and 3PDT configurations driven by AC or DC coils, and they have pin or blade terminals for socket mounting. The RJ Series is compact to reduce space requirements. They are available in a 12A SPDT version and an 8A DPDT version. They are driven by AC or DC coils and have blade terminals for socket mounting.
Kele Description
4PDT AC24V WITH LED
Manufacturer
IDEC
