RJ1S-C-A24 | IDEC | Relays & Contactors

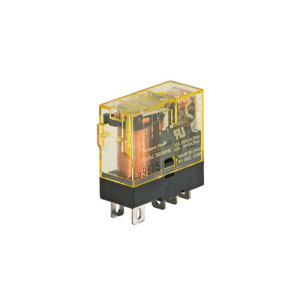

RJ Series SPDT Slim Power Relay
Brand:IDEC
MPN:RJ1S-C-A24
SKU:RJ1S-C-A24
List Price:
$11.11
Today's Price:
$5.78
Log in for customized pricingproduct specifications
Coil Voltage
24 VAC
Contact Rating
12 A
Contact Type
SPDT
Application
Industrial Machine Control, Control Panel, Energy Management
Approvals
CE Approved, UL Listed
Approvals CSA
CSA Certified File #LR35144
Coil Rating
43.9 mA @ 50 Hz, 37.5 @ 60Hz
Drop Out Voltage
30% Minimum
Frequency
50/60 Hz
Mechanical Life
30,000,000
Minimum Current
DC 5V, 100 mA
Mount
DIN rail, Surface
Operating Humidity
5 to 85% RH
Operating Temperature
-4 to 149 °F (-20 to 65 °C) without freezing
Operating Time
15ms
Reset Time
10 ms max
Switching Voltage
AC250V
Type
Power
Warranty
1 Year
Wire Size
Maximum up to 2-#12 AWG
Pick Up Voltage
80% Maximum
Current Rating
12 A
Number of Relays
1
product series features
- Blade style, pin style, and compact models
- Indicator light and/or check button available
- Surface or DIN rail mount
- UL recognized, CSA certified
more information & related documents
Series Description
The IDEC general-purpose relays are available in the RH Series blade-style relays and the RR Series pin-style relays and the RJ Series compact relays. The RH Series features a 10A switching capacity. They are available in SPDT, DPDT, 3PDT, and 4PDT contact configurations, driven by AC or DC coils, and they have blade terminals for socket mounting. The RR Series has a 10A contact rating. The RR Series relays are available in SPDT, DPDT, and 3PDT configurations driven by AC or DC coils, and they have pin or blade terminals for socket mounting. The RJ Series is compact to reduce space requirements. They are available in a 12A SPDT version and an 8A DPDT version. They are driven by AC or DC coils and have blade terminals for socket mounting.
Kele Description
MINI-RELAY, SPDT, 24VAC
Manufacturer
IDEC
