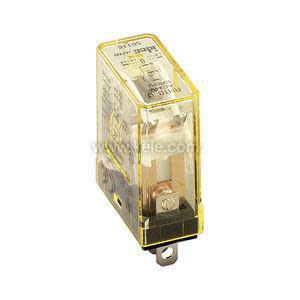

RH1B-ULAC24V | IDEC | Relays & Contactors
Plug-in Relay, SPDT, Blade, Indicator Light, 24 VAC coil voltage
Brand:IDEC
MPN:RH1B-ULAC24V
SKU:RH1B-ULAC24V
product specifications
Accessory
SH1B-05, DIN-3F, BAM-1000
Coil Voltage
24 VAC
Contact Rating
10 A
Contact Type
SPDT
LCD
LED
Application
Industrial Machine Control, Control Panel, Energy Management
Mount
DIN Rail, Surface Mount
Type
Power
Mounting Type
Din Rail, Surface
Number of Relays
1
Amps
10 A
product series features
- Blade style, pin style, and compact models
- Indicator light and/or check button available
- Surface or DIN rail mount
- UL recognized, CSA certified
more information & related documents
Series Description
The IDEC general-purpose relays are available in the RH Series blade-style relays and the RR Series pin-style relays and the RJ Series compact relays. The RH Series features a 10A switching capacity. They are available in SPDT, DPDT, 3PDT, and 4PDT contact configurations, driven by AC or DC coils, and they have blade terminals for socket mounting. The RR Series has a 10A contact rating. The RR Series relays are available in SPDT, DPDT, and 3PDT configurations driven by AC or DC coils, and they have pin or blade terminals for socket mounting. The RJ Series is compact to reduce space requirements. They are available in a 12A SPDT version and an 8A DPDT version. They are driven by AC or DC coils and have blade terminals for socket mounting.
Kele Description
RELAY, SPDT, 24 VAC, 10A, WITH INDICATOR, NO TEST BUTTON, BLADE, SOCKET MOUNT
Manufacturer
IDEC
Related Documents
RH Series Datasheet
