RIBLB

RIBLB | Functional Devices | Relays & Contactors

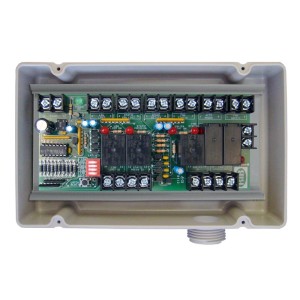

Enclosed AHU Fan Safety Circuit, 24 VAC Power Input

Brand:Functional Devices

MPN:RIBLB

SKU:RIBLB

List Price:

$248.00

Today's Price:

$128.96



(login for better pricing)

product specifications

Contact Rating

10 A

Approvals

CE Approved, UL Listed, C-UL, RoHS

Dimensions

2.0 in H x 7.0 in W x 4.3 in D (5.1 x 17.8 x 10.9 cm)

Housing Rating

NEMA 1, Plenum Rated

Indication

LED

Mechanical Life

10 Million Cycles Minimum

Mounting

3/4 in NPT Nipple Mount

Operate Time

250ms

Operating Humidity

5 to 95% (noncondensing)

Operating Temperature

-30 to 140 °F (-34 to 60 °C)

Type

Fan Safety Alarm Circuits

Warranty

1 Year

Weight

0.8 lbs (0.38 Kg)

Mounting Type

Surface

Number of Relays

5

Amps

10 A

Supply Voltage (Nominal)

24 VAC

product series specifications

Frequency: 50/60 Hz

Wire Length: 16" (40.6 cm)

Life Rating: 10 million cycles minimum mechanical

Relay Status: LED, ON - relay activated

Operating Temperature: -30° to 140°F (-34° to 60°C)

Operating Humidity: 5-95% RH non-condensing

Housing Type: Plenum rated, NEMA 1, NEMA 4

Conduit Hub: 1/2" NPT, 3/4" NPT

Dimensions:

A Size Enclosures: 1.7" H x 2.8" W x 1.5" D (4.32 x 7.11 x 3.81 cm)

B Size Enclosures: 4.0" H x 4.0" W x 1.8" D (10.16 x 10.16 x 4.57 cm)

G Size Enclosures: 2.3" H x 3.2"W x 1.8" D (5.84 x 8.13 x 4.57 cm)

Approvals: UL listed, UL 916 Energy Management UL 864 Fire, cUL listed, CSFM, UL File S7312

Warranty: 1 year

product series features

  • Convenient and economical to use
  • Relay status indicator via LED
  • Coil uses low current and accepts a wide range of AC and DC voltages
  • Closed/Open/Auto switch option available
  • Nipple- or screw-mountable
  • Compact, gray plastic enclosure
  • Color-coded wires for eliminating errors
  • UL listed for UL916 Energy Management and UL864 Fire
  • Made in the USA

more information & related documents

Series Description

The Functional Devices RIB Relay In a Box Pilot Series controls most Building Automation Systems, BAS, HVAC, low-horsepower motor and lighting applications. The relays come mounted and pre-wired in a housing, saving the installer the time, trouble and expense of buying separate components (relay, socket, mounting rail, and enclosure) and assembling them on the job or at the shop. The RIB Pilot Series has a protruding 1/2 in or 3/4 in NPT nipple from which all wires exit (except T series). To install, remove a conduit knockout in the equipment, insert the wires and nipple through the hole, tighten the locknut, and connect the wires. The RIB Relay in a box pilot series (includes RIBU1C, RIBU2C, RIBH1C, RIBH2C, RIBH1S and more) has 10A relay contacts and is used to control light electrical loads, dirve power relays or contactors, or sense the voltage being fed to electrical loads. The RIBT Series- High/Low Voltage Separation Series is designed to provide physically separate entrances for connections to the relay input coil and output contacts. Relay contact wires exit the housing through a 1/2 in or 3/4 in NPT nipple. The cover of the RIBT Series is removable and, with star bushings or 1/2 in conduit, the coil drive wires can enter the housing through one of two convenient openings. The coil drive wires are secured to screw terminals within a separate wiring compartment in the RIBT. Most of the RIBs in the Power Series are also available in the T Series. Each relay is a proven performer in Building Automation Systems, BAS, applications.

Kele Description

ENC RIB LOGIC BOARD
