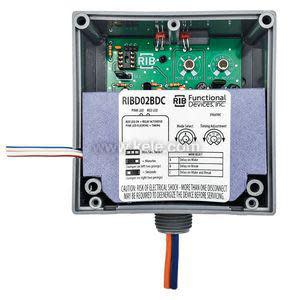

RIBD02BDC | Functional Devices | Relays & Contactors
Enclosed Time Delay Relay 20 Amp SPDT, Class 2 Dry Contact Input, 208-277 Vac Power Input
Brand:Functional Devices
MPN:RIBD02BDC
SKU:RIBD02BDC
product specifications
Coil Voltage
208 VAC, 277 VAC
Contact Rating
20 A
Contact Type
SPDT
Enclosure Rating
NEMA 1
Feature
LED
LCD
Surface
Mount
Surface
Power Input
62 mA @ 208-277 VAC
Type
Dry Contact
Current Rating
20 A
Number of Relays
1
product series specifications
Coil Rating: 120 VAC @ 42 mA, 208-277 VAC @ 62 mA, 120-277 VAC @ 50 mA
Contact Rating: 20A resistive @ 277 VAC, 1110 VA pilot duty @ 277 VAC, 770 VA pilot duty @ 120 VAC, 20A ballast 277 VAC, N.O. 10A ballast 277 VAC, N.C 240W tungsten 120 VAC, N.C. 2 hp 277 VAC, 1 hp 120 VAC, 10A general use @ 250 VAC, 10A resistive @ 30 VDC, 1/2 hp 125-250 VAC, 470 VA pilot duty 120-240 VAC
Frequency: 50/60 Hz
Controlling Contact: SPST, 7 VDC, 1µA minimum
Output Type: SPDT, SPST-NO
Wire Length: 16" (40.6 cm)
Operating Temperature: -30° to 140°F (-34.4° to 60°F)
Operating Humidity: 5% to 95% non-condensing
Housing Type: NEMA 1, plemum
Conduit Hub: 1/2" NPT
Dimensions:
RIB01, RIB02 2.3" H x 3.2" W x 1.8" D (5.8 x 8.1 x 4.6 cm)
RIB21CDC 1.7" H x 2.8" W x 1.5" D (4.3 x 7.1 x 3.8 cm)
Approval: UL File E68805
Warranty: 1 year
product series features
- Remote power input, dry contact control
- LED indication
- UL listed
- Optional override switch
more information & related documents
Series Description
The Functional Devices RIB Series dry contact input is controlled by Class 2 circuits with a dry contact from a BAS controller, thermostat, switch, another relay, or a solid-state switch. The power to energize the RIB Series comes from the load being controlled or a local power source near the relay. The relay contacts are isolated from the input power and the dry contact input.
Kele Description
ENC TID RLY, CL2 DRY CONTACT, 208-277VAC, 20A SPDT
Manufacturer
Functional Devices
Related Documents
RIB01P Datasheet
