Family Name: Pressure bypass and equalizing manifold

Main Use: Pressure Transducer Diaphragm Protection

Construction: Brass, Nylon valves w/ copper tubing

Operating Pressure: 250 PSIG (1724 KPa)

Overpressure (Burst): 250 PSIG (1724 KPa)

Operating Temperature: 200°F (93°C)

Operating Humidity: 0 to 98% Non-condensing

Media Compatibility: Liquid/Gasses compatible w/Brass & copper fittings

Process Connection: Two- ¼" FNPT (High/Low)

Mounting: Four-hole plate, 0.156" (0.4 cm) hole, diameter

Enclosure Rating: Open design (No enclosure)

Dimensions: Valve & plate w/o transducer

3/5 VLV Plate: 6.25"H x 4.00"W x 2.30"D (15.8 x 10.2 x 5.8 cm)

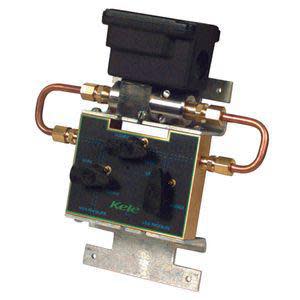

M230-3VLV: 7.88"H x 7.25"W x xxD (20 x 18.4 x yyy cm)

W30-3VLV: 11.125"H x 7.25"W x xxxd (28.3 x 18.4 x yy cm)

DPW-3VLV: 9.75"H x 7.24"W x xxd (24.8 x 18.4 x yy cm)

Weight: 2.5 lb (1.13 Kg)

Warranty: 1 Year
