SRCMR25WBA2F1 | Setra | Pressure

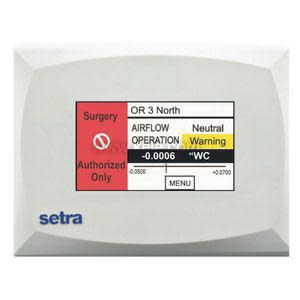

Room Pressure and Condition Monitor, ±0.25 WC, 24 VAC with BACnet, ±0.25%, 1 Snubber
Brand:Setra
MPN:SRCMR25WBA2F1
SKU:SRCM-R25WB-A2F1
product specifications
Accuracy
0.25%
Communications
BACnet
Direction
Bi-Directional
Measurement
Inches of Water
Media Compatibility
Liquid/Gas
Mount
Wall Mount
Output
4 - 20 mA
Range
±1 in WC
Type
Monitor
Display
LCD
Supply Voltage (Nominal)
24 VAC
product series specifications
Supply Voltage: 18-32 VAC, 50/60 Hz, 10 VA
Accuracy: ±0.5%, ±0.25% optional
Resolution: 0.0001= WC
Signal Output: 0 to 5/10 VDC @ 5KO or 4-20 mA @ 510O
Relay Type: SPDT
Relay Rating: 0.6 A @ 120 VAC, 2 A @ 30 VDC
Digital Input: Dry contact door switch
Analog Input: Two 0-(5,10VDC) or 4-20mA inputs (for opt. remote pressure sensors)
Setpoint: Adjust Local Alarm value set on touch screen
Control Type: Single room differential pressure monitor
Communication: BACnet MS/TP
Field Interface Devices (order Separately): RPS SS room pressure probe
Display/Audible: Dimmable color touchscreen 4.3" 480 x 272, 4 color status indicators, 0-4 Audible settings w/ silence switch
Sensor Type: Capacitive
Overpressure: (Burst) ±27" WC (5.7 kPa)
Max Operating Pressure: (Proof) ±27" WC (6.7 kPa)
Operating Temperature: 32° to 120°F (0° to 50°C)
Operating Humidity: 5 to 95% RH (Non-condensing)
Wetted Parts: Stainless steel, glass, silicone, brass, steel
Media Compatibility: Inert dry air
Process Connection: Two-3/16" OD brass H/L, for ¼" OD tubing
Wiring Terminations: 3-22, terminals (18-22 AWG)
Mounting: Flush with 3 gang double deep box (7")
Enclosure Rating: NEMA 1 (IP54), LEXAN, UL94V-0
Dimensions: 7.45"W x 5.84"H x 0.38"D, (18.9 x 14.8 x 0.97 cm)
Weight: 1.2 lb (0.55 Kg)
Approvals: CE
Warranty: 1 year
product series features
- Color coded room status indication
- Flush Mount Design
- New intuitive interactive interface
- Clone configuration capability
- Selectable analog voltage and milliamp outputs
- SPDT alarm relay
- 4.3 in TFT LCD Display
- Optional BACnet MSTP
- SPDT relay output
- Analog current or voltage outputs
more information & related documents
Series Description
The SRCM Series from Setra is a 2-in-1 solution incorporating the best of the SRPM and adding room condition monitoring capability. A large 4.3 in FT displays room conditions such as room ID, room pressure mode, room status, room pressure and a slide bar that indicates pressure relative to set point. It is also capable of displaying a full screen room condition banner to communicate the current room status and is easily programmed through the SmarTTouch™ display The SRCM Series incorporates a flush mount design for the most esthetic installation. The display hinges up for easy access to a USB port that is provided for quick cloning of multiple units. The SRCM Series also has Multi-room dP measurement capabilities with the use of a remote dP transmitter, as well as the ability to display up to eight parameters utilizing BACnet® MSTP. In addition to the standard analog and relay outputs, the SRCM Series is available in a BACnet® MSTP configuration that is easily setup through the SmarTTouch™ display. The SRCM Series is perfect for applications in laboratory, pharmaceutical, research, isolation room, and surgical suite applications or anywhere maintaining and monitoring differential pressure.
Kele Description
ROOM PRESSURE MONITOR, ++/-0.25%, ++/-0.25" WC, FLD SEL OUT, BACNET, LCD
Manufacturer
Setra
Setra SRCM Series Datasheet
