LITER25WBDWPVIAN | Setra | Pressure Components

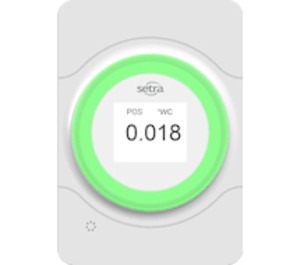

LITE VISUAL LIGHT INDICATOR +/-0.25IN WC +/-0.5% ACCURACY INSIDE ROOM MOUNT
Brand:Setra
MPN:LITER25WBDWPVIAN
SKU:LITER25WBDWPVIAN
product specifications
Media Compatibility
Air
Output
4 - 20 mA
Range
±1 in WC
Type
Adjustable
Supply Voltage (Nominal)
24 VDC
product series specifications
Accuracy: ±0.5% FS
Non-linearity (BFSL): ±0.44% FS
Hysteresis: ±0.10% FS
Non-repeatability: 0.05% FS
Span Tolerance: ±1% Rdg
Thermal Effects Zero shift %FS/°F (°C) and Span shift %FS/°F (°C): ±0.033 (±0.06)
Long-term stability: ±0.5% FS per year
Overpressure: ±1 PSI (15" WC for <0.10" WC FS)
Pressure media: Air or non-conductive, non-explosive gases
Pressure fittings: 3/16" barbed fitting
Mounting Position: Can be mounted vertical or horizontal. Re-zero after installation
Operating temp. °F (°C): 32 to 120 (0 to 50)
Storage temp. °F (°C): -20 to 160 (-30 to 70)
Operating humidity: 5 to 95% RH (non-condensing)
Enclosure Protection/Ingress protection (IP) rating: IP54
Light ring: Green, red, or off
Numeric value: 4 digits
Features:Re-zero, Alarm thresholds, Door delay, POS or NEG indicator,
Display on/off, Significant digits, Light ring, Units display
Power: 24 VAC (+/-10%), 24 VDC (18-32), 50-60 HZ
Power draw: 2W max, 1W typical
Analog output: Set for 0-5V, 0-10V, or 4-20mA signal
Wire: Stranded unshielded twisted-pair, 18-24 AWG
Terminals: Fixed, non-removable
Approval: CE, RoHS
Dimensions: 3.42"W x 4.88" x 1.83" (67 mm x 124 mm x 46.5 mm)
Mounting: Single-gang US electrical box, China 86 box Use code with caution.
Case: Fire-retardant plastic UL94 V-0
Weight: 8 oz (0.5 lbs)
Display: Color: RGB, 65K, Resolution: 128x160, backlight: LED
Alarm indication: Red illuminated LED light ring , 11mm standoff from faceplate, viewable at 90° angle from side
product series features
- Simple single-room pressure indication for all pressurized healthcare spaces
- Saves preventive maintenance from manually checking each room
- Sleek and attractive single wall plate
- Simple to install in minutes
- Visual alarm via red/green light ring
- Silent operation, no audible alarm
- Offset light pipe that can be seen at an angle or down a hallway
- Digital display can be always-on or momentary
- Full configuration is easy, using just 3 buttons
- Analog output provides pressure reading to BMS system
- Works with Setra FLEX to serve rooms with multiple doors
more information & related documents
Series Description
Setra Lite provides a simple, cost-effective, and accurate way to measure and display room differential pressure in areas today that require manual verification. For local staff managing an area, Setra Lite has a light ring that is green or red, showing a clear indication of room conditions. For the facility manager, using Setra Lite means the frequency of preventative maintenance walk-by inspections can be reduced because Setra Lite is monitoring the space.Setra Lite has many features found only in larger, more complex room pressure monitors. These include a bright light ring that can be seen at an angle or down a hallway, a digital display of the pressure value that is always-on or momentary, an alarm delay for door entry, and POS or NEG room mode. The Setra Lite sensor has Setra's accuracy and reliability you know you can trust. Setra Lite is about the size of a standard light switch, and just as a simple to install. It fits in a single-gang US electrical box, international 86-box or international round back-box, and is powered by 24VAC or 24VDC. The reference side pressure pickup is integral with the Lite faceplate. An analog output provides the building management system with the pressure signal for any additional trending or alarming needed. The Setra Lite also integrates seamlessly with the Setra FLEX environmental monitor. Mount Setra Lite at additional doors that enter the space, and use an on-screen badge to display its value.
