209250PG2M11A1 | Setra | Pressure Components

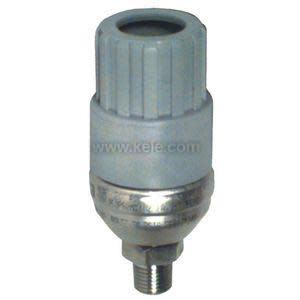

Setra 209 OEM Pressure Transducer, ±0.25%, 0-250 PSI, Gauge, 1/4 NPT Male, 4-20 mA, Threaded Conduit Connection
Brand:Setra
MPN:209250PG2M11A1
SKU:209250PG2M11A1
List Price:
$693.88
Today's Price:
$360.82
Log in for customized pricingproduct specifications
Accuracy
0.25%
Approvals
CE, ROHS
Direction
Uni-Directional
Measurement
PSI
Media Compatibility
Liquid/Gas
Output
4 - 20 mA
Range
±500 psi
Type
Industrial and OEM
Made in USA
Made In USA
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: Not specified
Current output: 14 to 30 VDC @ 25 mA max
Voltage output: 9 to 30 VDC @ <5 mA
Accuracy: ± 0.25% Full Scale
Signal Output (Volts,Current): 0.5-5.5V @ 50KO, 4-20mA @ 800O (loop powered)
Sensor Type: Capacitive
Overpressure: (Burst) 250 to 6500 psig (1723 to 44,815 kPa)
Max Operating Pressure: (Proof) 2-3000 psig (13.8 to 20,684 kPa)
Operating Temperature: -40° to 185°F (-40° to 85°C)
Compensated Temp. Range: -4° to 176°F (-20° to 80°C)
Operating Humidity: 0 to 95% Non-condensing
Wetted Parts: 17-4 Stainless Steel
Media Compatibility: Liquid or Gas compatible w/17-4 SS
Process Connection: 1/8? MNPT
Wiring Terminations: 2-Screw terminals
Mounting: By process connection
Enclosure Rating: 17-4 Stainless Steel and Valox plastic
Dimensions: 1.62?W x 3.63?L (4.1 x 9.2 cm)
Weight: 0.14 lb (0.07 Kg)
Approvals: CE, RoHS
Warranty: 1 year
product series features
- Low cost
- Highly accurate
- Current output
- Lightweight
- Compatible with most common applications
- Stainless steel construction
- Conduit adapter standard
- Optional voltage output available
more information & related documents
Series Description
The Setra 209 Series pressure transmitter is specifically designed for industrial applications and building automation systems with high performance requirements. These pressure transmitters measure gauge pressure and can be used with gases or liquids compatible with 17-4 PH stainless steel. The 209 Series is packaged in a rugged, stainless steel/Valox housing, which is small and lightweight. The stainless steel capacitive sensor and high level output, IC-based circuit assures excellent stability.
Kele Description
PRESS XMTR, +/-0.25%, 0-250 PSI, 4-20 MA
Manufacturer
Setra
Related Documents
209 Series Data Sheet
