PSS2-100-G | Kele | Pressure Components

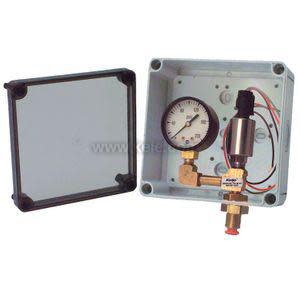

Stainless Steel 4-20 mA Pressure Transmitter, 0-100 psig (0-689.5 Pa), Enclosure w/Pressure Gauge (Watertight w/Transparent Cover, Brass Fittings)
Brand:Kele
MPN:PSS2-100-G
SKU:PSS2-100-G
product specifications
Enclosure Rating
NEMA 4
Accuracy
0.5%
Approvals
EMC, ROHS
Direction
Uni-Directional
Measurement
PSIG, Pascals
Media Compatibility
Liquid/Gas
Output
4 - 20 mA
Range
±100 psi
Type
Transmitter
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage:8 to 30VDC @ 25 mA max
Accuracy: ±0.5% of span
Pressure Range:± 1% of span for =50 psig
Signal Output (Current): 4-20 mA @ 800 O (loop powered)
Sensor Type: ASIC piezo-resistive and temp. Compensated
Display: (Optional) 2½ Dial gauge or 0.5? Digital with 3.5 digits
Overpressure: (Burst) 3x rated pressure
Max Operating Pressure: (Proof) 5x rated pressure
Operating Temperature: -40° to 221°F (-40° to 105°C)
Operating Humidity:10 to 90% Non-condensing
Wetted Parts: Brass, 304SS and 316SS
Media Compatibility: Liquid or Gas compatible w/Brass, 304SS and 316SS
Process Connection: Direct-1/8? MNPT, Encl. bulkhead- 1/8? FNPT
Wiring Terminations: 2-16 AWG pigtail in 36? (91cm) cable
Mounting: By process connection or optional enclosure
Enclosure Rating: (Optional) plastic enclosure, NEMA 4, (IP66)
Dimensions: 5.11?H x 5.11?W x 2.95?D, (13.0 x 13.0 x 7.5 cm)
Weight: 0.3 lb (0.13 Kg)
Warranty: 1 year
product series features
- Splash-proof, plug-in electrical connector
- For steam, water, glycol, refrigerant, and more
- 4-20 mA output
- 304L/316L stainless steel wetted parts
- Wide range of pressures
- High overpressure capability
more information & related documents
Series Description
The Kele PSS2 Series Stainless Steel Pressure Transmitter is highly accurate and compact, which makes it ideal for HVAC, building automation, and process gauge pressure applications. A splash-proof Packard-type electrical connector is provided for ease of installation. Eleven standard ranges are available for a wide variety of applications.
Kele Description
SS TRANS 0-100PSI W/ENCL GAUGE
Manufacturer
Kele
