22WP-516 | Belimo | Pressure Components

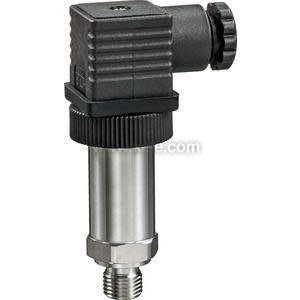

Pressure Sensor (Liquids), 0...100 psi, active, DC 0...10 V
Brand:Belimo
MPN:22WP-516
SKU:22WP-516
product specifications
Enclosure Rating
NEMA 4
Accuracy
0.5%
Approvals
CE
Direction
Uni-Directional
Measurement
PSI
Media Compatibility
Liquid/Gas
Output
0 - 10 VDC
Range
±100 psi
Type
Adjustable
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: 22WP-51x 15...24 VDC, ±10%, 0.15 W; 24 VAC, ±10%, 0.3 VA
Supply Voltage: 22WP-53x
Sensor Technology: Strain gauge on stainless steel membrane
Accuracy for Pressure: ±0.5% FS @ 77°F (25°C)
Operating Temperature Range: -40°F to 220°F (-40°C to 105°C)
Signal Output (Active Pressure):
22WP-51x DC 0-10 V
22WP-53x 4-20 mA
Pressure Range:
22WP-511: 0 to 15 psi
22WP-514: 0 to 50 psi
22WP-516: 0 to 100 psi
22WP-517: 0 to 200 psi
22WP-531: 0 to 15 psi
22WP-532: 0 to 50 psi
22WP-534: 0 to 100 psi
22WP-535: 0 to 200 psi
Overpressure Limit: 30 psi
Max. system Pressure: 45 psi
Enclosed Material: base: stainless steel 1.4305; cover: aluminum pressure die casting
Enclosure Rating: IP65, NEMA 4
Approvals: UL 2043, UL 50
Weight: 0.12 lbs
Warranty: 5 years
product series features
- Active sensor for pressure in liquid mediums for air conditioning, heating and water applications.
- NEMA 4 / IP65 enclosure
more information & related documents
Series Description
Belimo's 22WP Pressure Sensor (Liquid) Series comes with an active sensor (0-10 V or 4-20 mA) for measuring the pressure in liquid mediums for air conditioning, heating and water applications. Suitable for plants with refrigerant. NEMA 4 / IP65 rated enclosure.
Kele Description
PRESS XMTR, +/-0.50%, 0-100 PSI, 0-10 VDC
Manufacturer
Belimo
Related Documents
Belimo 22WP-51x- Datasheet
