J54-25 | United Electric | Pressure Components

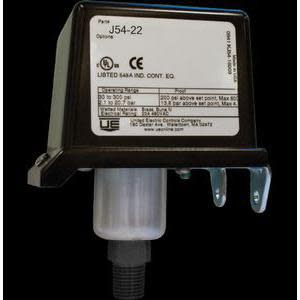

Pressure Switch, 10-100 psi Adjustable Range, 1 to 2.5 psi Deadband, Buna N Diaphram and O-ring 1/4 FNPT
Brand:United Electric
MPN:J54-25
SKU:J54-25
List Price:
$428.00
Today's Price:
$222.56
Log in for customized pricingproduct specifications
Contact Rating
15 A @ 125 VAC, 15 A @ 250 VAC, 15 A @ 480 VAC
Contact Type
SPDT
Enclosure Rating
NEMA 1
Accuracy
1%
Direction
Uni-Directional
Housing Material
Poly
Measurement
PSI
Media Compatibility
Air
Range
±100 psi
Type
Adjustable
Supply Voltage (Nominal)
480 VAC
product series specifications
Relay Type: SPDT
Relay Rating: 15A non-inductive, 125/250/480 VAC, 60 Hz
Setpoint Range:
J54-24: 3 to 30 psi (21 to 207 kPa)
J54-25: 10 to 100 psi (69 to 690 kPa)
J54-27: 30 to 300 psi (207 to 2070 kPa)
J54-28: 50 to 500 psi (345 to 3448 kPa)
Deadband:
J54-24: 0.4 to 1.5 psi (3 to 10 kPa)
J54-25: 1 to 2.5 psi (7 to 17 kPa)
J54-27: 1.3 to 4 psi (9 to 28 kPa)
J54-28: 1.5 to 5 psi (10 to 34 kPa)
Overpressure: 200 psi (1379 kPa) above setpoint, maximum 600 psi (4137 kPa)
Operating Temperature: 0° to 160°F (-18° to 71°C)
Wetted Parts: Buna-N diaphragm and O-ring, aluminum
Process Connection: 1/4" MNPT
Weight: 0.75 lb (0.34 Kg)
Approvals: UL File #E42272, CE
Warranty: 1 year
product series features
- Low cost
- NEMA 1 enclosure
- Compact size
- 15A SPDT switch
more information & related documents
Series Description
The J54 Series Pressure Switch uses a diaphragm to sense changes in pressure to open or close an electrical circuit. These pressure switches are ideal for building automation systems, BAS. The control set point can be varied by turning the internal adjustment hex screw. The switch is available with adjustable ranges from 3 psi (21kPa) to 500 psi (3448 kPa).
Kele Description
PRESSURE SWITCH, 10-100 PSI
Manufacturer
United Electric
Related Documents
J54 Instruction Manual
