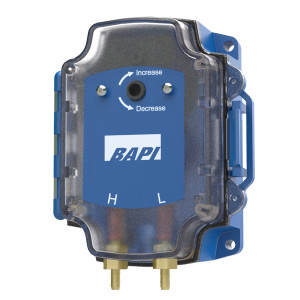

The BAPI Differential Pressure Switch is ideal for air filter monitoring, static pressure proving, airflow proving or auxiliary fan actuation. The setpoint is field adjustable from 0.1” to 40” WC (20 to 10,000 Pa), and the unit can measure positive pressure, vacuum or true differential pressure. The six pressure ranges are field selectable by changing a color-coded spring. The spring for the range that you order is preinstalled, and the other five springs are shipped with the unit so that you can change ranges in the field if you choose.<br> The unit features a rugged plastic enclosure that protects the electrical terminations and pressure adjustment screw which is easily accessed through a port in the front cover using a square screwdriver bit (BA/SQ1BIT). The quick connect wiring terminations are accessed by opening the hinged cover. The unit is very compact and can be mounted directly on a flat surface with the rugged mounting feet.The unit also features an extremely high proof pressure so that it will continue to function properly even if it is accidently connected to an unusually high or low pressure.
