FLEXR25WBRC7S1 | Setra | Pressure Components

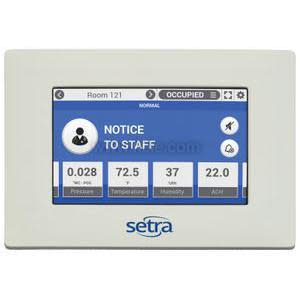

Pressure Transmitter, +/-0.25 WC, Control and Monitoring, Full Control Operation, 7 Screen, Setra Logo, 1 Snubber
Brand:Setra
MPN:FLEXR25WBRC7S1
SKU:FLEXR25WBRC7S1
product specifications
Accuracy
0.25%
Direction
Bi-Directional
Measurement
Inches of Water Column
Media Compatibility
Air
Mount
Wall
Output
4 - 20 mA
Range
±1 in WC
Type
Controller
Communication Protocol
BACnet
Display
LCD
Supply Voltage (Nominal)
24 VDC
product series specifications
Dimensions: 9.25"W x 6.3"H x 0.65"D, (215.0mm x 160.0mm x 16.51mm)
Mounting: Triple-gang, double deep electrical box. RACO 697, Appleton M3-350, or equivalent
Case: Fire-retardant plastic UL94 V-0
Weight: 2 lbs
Display: 7" Projected Capacitive (PCAP) multi-touch. 800 x 480 pixels. Usable with medical gloves.
Display brightness: 1-7
USB port: Micro-USB port for configuration cloning between units and software upgrades
Audible alarm: Dual piezo with 3 volume levels (0-75 dB max.)
Protocols (BACnet objects can be found at setra.com) BTL-compliant:
BACnet/IP using IPv4, Ethernet CAT5 cables with RJ45
BACnet MS/TP up to 76.8 kbps, 3-conductor, twisted, shielded 16-24 AWG cable
Power: 24 VAC (18-30 VAC operational), 50-60 HZ
Power draw: 13 W max, 10 W typical
Wire: 2 or 3-conductor (depending on application) stranded unshielded twisted pair, 16-24 AWG
Connections: Removable Terminal Blocks
Approvals: CSA, CE, RoHS, WEEE, Made in the USA
Operating temperature: 32 to 120°F (0 to 50°C)
Storage temperature: -40 to 185°F (-40 to 85°C)
Operating humidity: 5 to 95% RH (non-condensing)
Ingress Protection (IP) rating: IP54
Warranty: 1 year
product series features
- Supports 3 rooms, 6 parameters each
- 7 in. projected capacitive touch screen
- BACnet/IP and BACnet MS/TP
- Flush mount to wall
- Mounts in standard electrical boxes
- Full touch response with medical gloves
- No programming required
- 4 Inputs and 2 outputs on-board
- On-board or external pressure transducer
- Monitor and control pressure, temperature, humidity, air change rate, and 2 user-defined parameters
more information & related documents
Series Description
The Setra FLEX™ provides a flexible room environmental control and monitoring solution in a simple-to-use package. An attractive flush-mount faceplate is complemented by an intuitive graphical display to meet any architectural requirement. The unit supports 3 rooms, monitoring up to 6 parameters for each room. An optional differential pressure sensor can be either factory-installed in the unit or ordered separately and installed above the ceiling. Integration with building automation systems is made easy through either BACnet/IP or BACnet MS/TP network protocols.
Kele Description
ROOM PRESSURE CONTROLLER, ++/-0.25%, ++/-0.25" WC,
